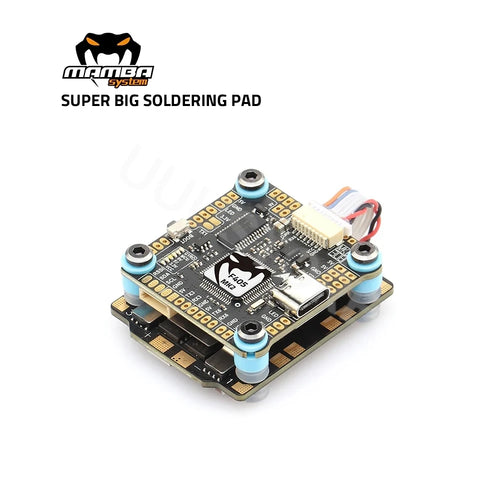

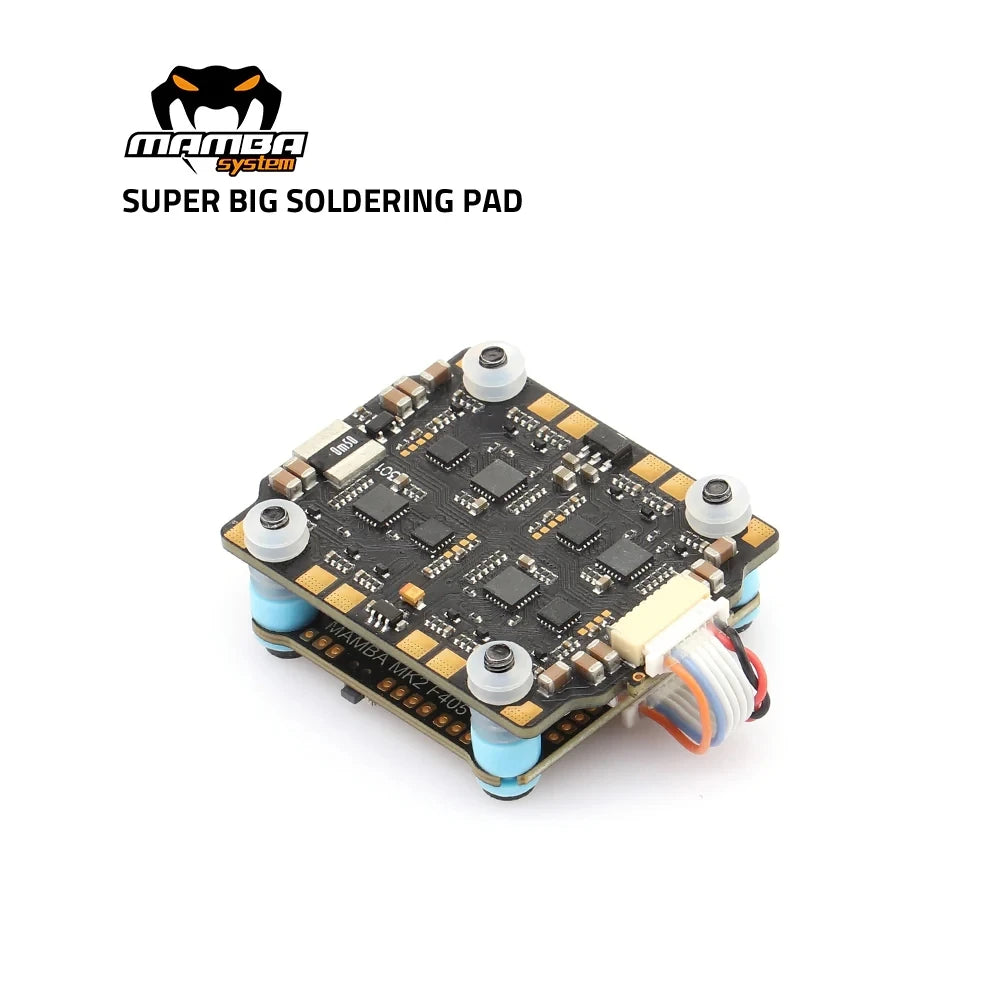

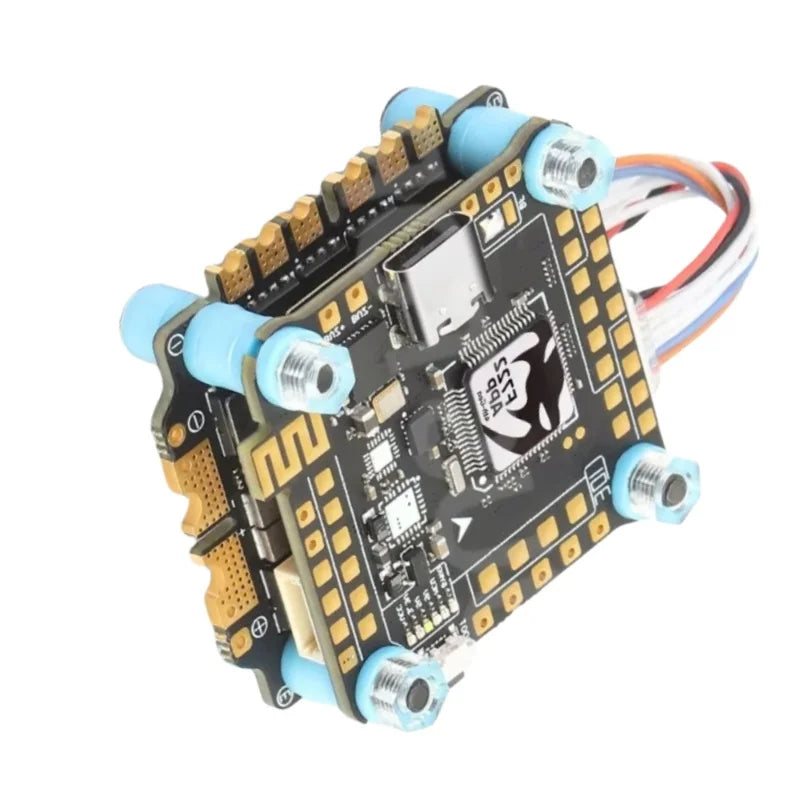

Diatone Mamba F405MK2 V2 Stack Combo F405 MK2 V2 Betaflight Flight

The Diatone Mamba F405 MK2 V2 + F55 55A BLS Stack is a high-performance flight controller and ESC stack designed for drone enthusiasts. The flight controller features an F4 MCU, 32KHz Gyro, and integrated Betaflight OSD, providing stable and precise flight control. The ESC stack includes four 55A brushless ESCs, offering reliable and efficient power delivery to the motors. With its compact size and lightweight design, this stack is perfect for FPV racing or freestyle drones. Whether you are a beginner or an experienced pilot, the Diatone Mamba F405 MK2 V2 + F55 55A BLS Stack is a must-have for enhancing your drone’s performance.

NOTE !!!
This stack comes with ICM42688P GYRO on the Flight Controller

FC Specifications

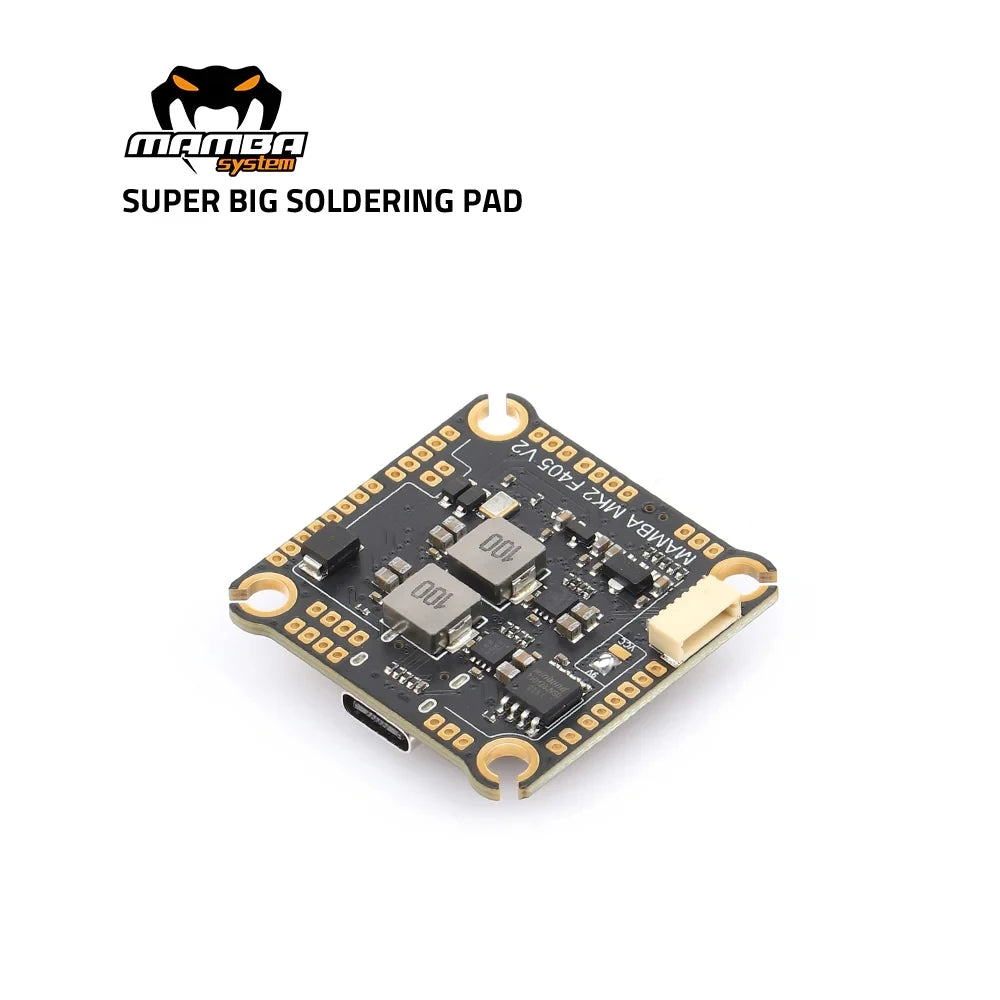

MAMBA F405MK2 V2

MCU: 168MHz STM32F405

GYRO: ICM-42688-P

Target：FURYF4OSD

OSD: Yes

Blacbox: 16M Flash Memory

Barometer: No

Uarts: 3 Set

I2C: Yes

F.Port: No

RSSI: Yes

Buzzer Pad: Yes

CURR Pad: Yes

ESC Signal: 4 Set

ESC Soft: Dshot300/600

ESC Telemetry: Yes

Power Led: Yes

LED Controller:BF LED

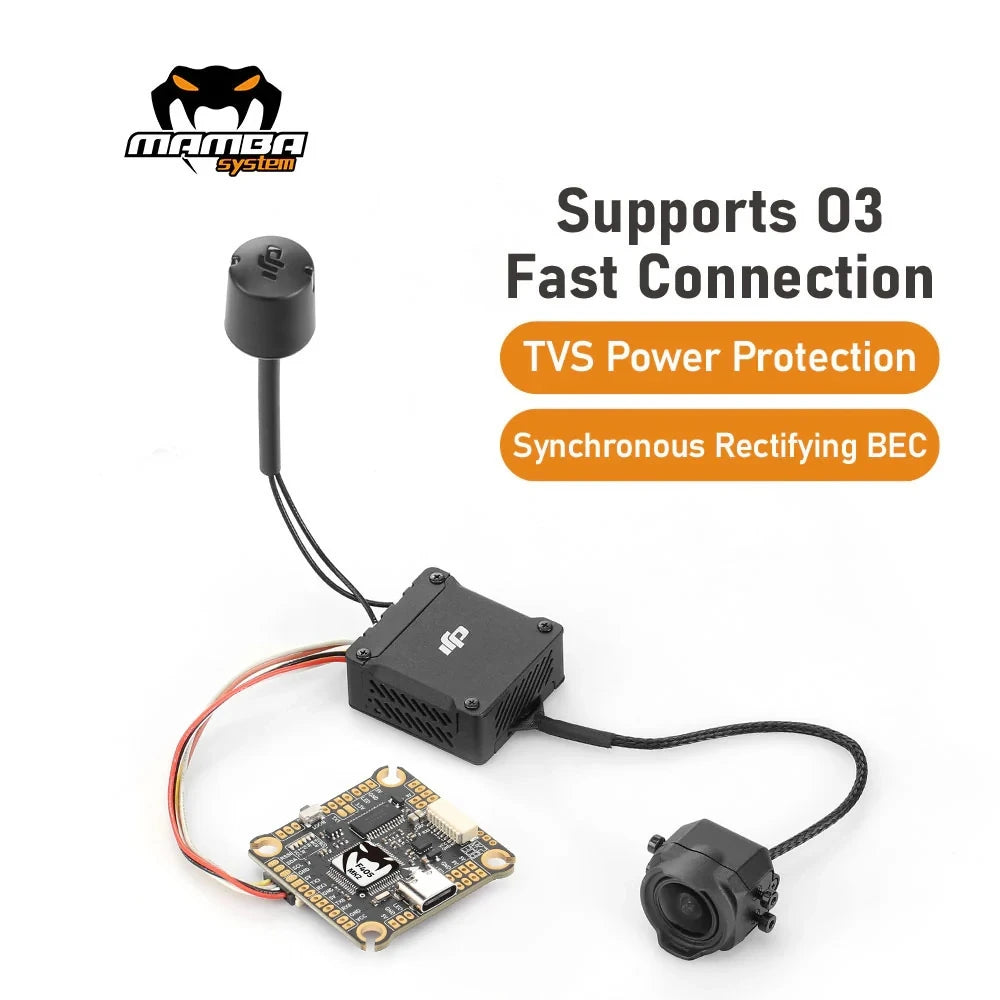

AIR UNIT Port: Yes

WIFI: No

VTX Switch: No

Receiver Protection: Yes

BEC Protection: Yes

TVS Protection: Yes

BEC:3.3V 0.5A& 5V 2A& 9V 2A

Input: 3~6S Lipo (12.6~25.2V)

Mounting size: 30.5mm/M3

ESC Specifications

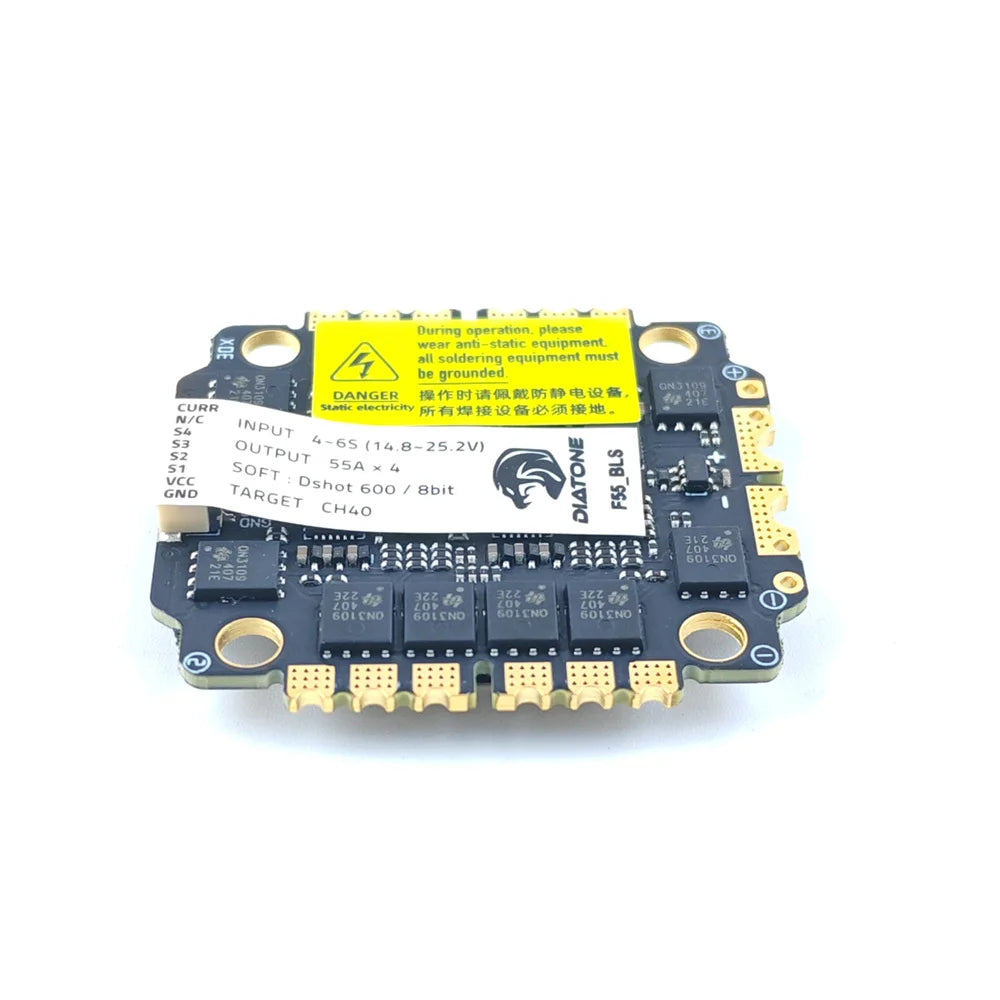

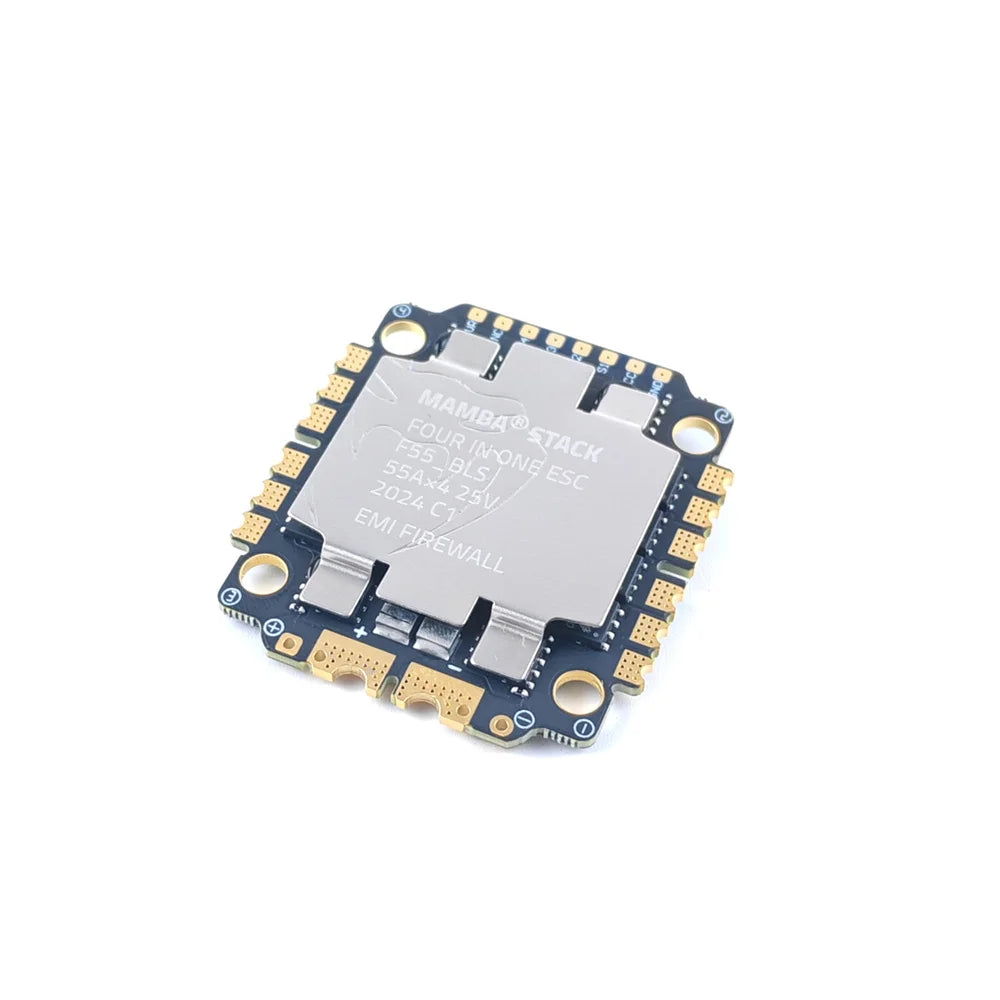

MAMBA F55_BLS

Input voltage: 4~6S Lipo (14.8V~25.2V)

Continue current:55A×4

Burst current 65A (10S)

BEC: No

Target：BLHeli_S CH40

SOFT: Dshot300/600

TVS Protection: No

MOUNTING: 30.5mm/M3

Supply :

High Frequency 1000uF/35V ×1

8pin sh1.0 ×2

AIR UNIT sh1.0 ×1

12AWG 100mm ×2

AMASS Original XT60×1

Package Included:

MAMBA F405MK2 V2 FC  x1

MAMBA F55 BLS 55A ESC X1

High Frequency 1000uF/35V ×1
8pin sh1.0 ×2

12AWG 100mm ×2
AMASS Original XT60×1
