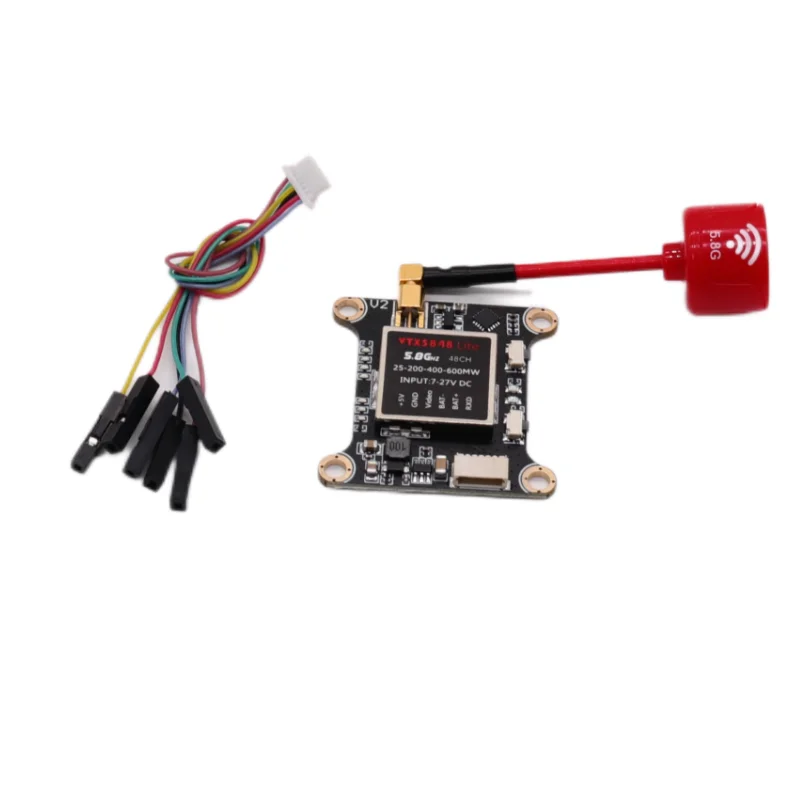

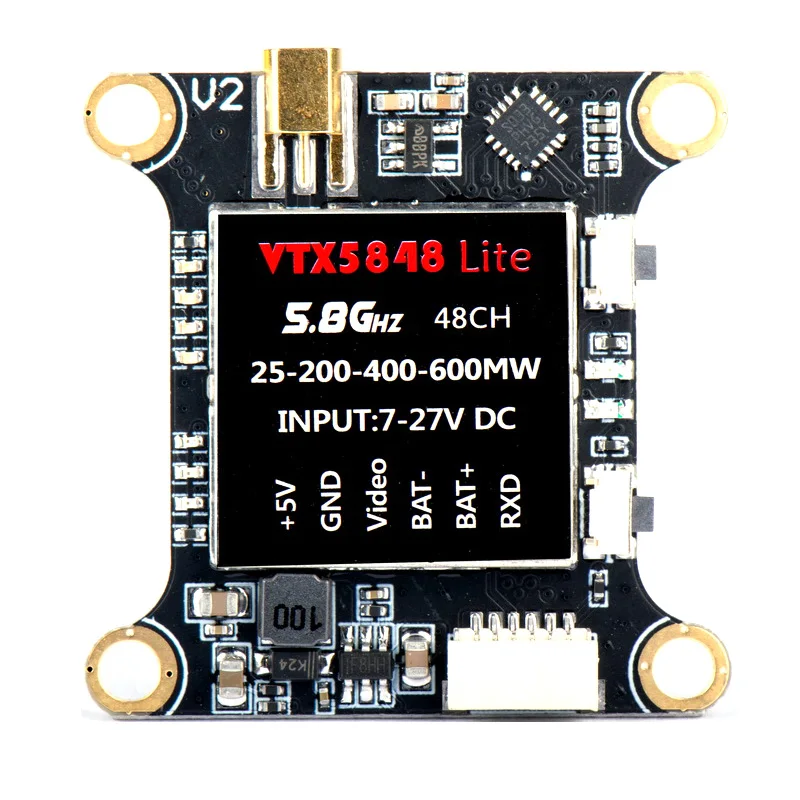

Item name: VTX5848 LITE FPV video transmitter
Input voltage: DC 7-27V
Input current: 3s or 4s battery, 600mW=360 MA±10MA
Output voltage: DC 5V 1A
Output power: 25/100/200/400/600mW switchable
Channel: 48CH
Frequency switch: manual button/OSD (simultaneous support)
Connector: MMCX
Size: 36x36x9mm
Mounting hole: 30.5x30.5mm, M3
Features:
-Stable output power, long transmission distance

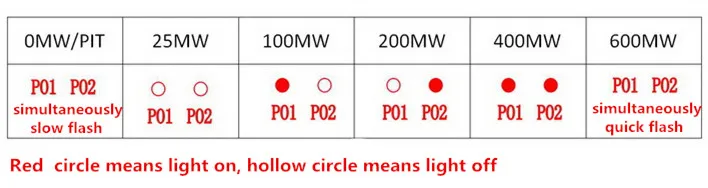

-Fast 5-speed power switch, independent two red indicator, indicating the current output power 25/ 200/ 400/ 600MW
-Using 4(blue)*3(green) LED display 48 channel
-Support OSD signal remote frequency control, support PIT mode ( omW output power only can be open in OSD)
-With power filter
-Antenna using MMCX to SMA reducing the space
-Strong power chip, input up to 27V, output 5V/1A low ripple, less interference
-30.5mm*30.5mm mounting hole distance, suitable for CC3D, NAZE32, F3, F4, F7 flight controller

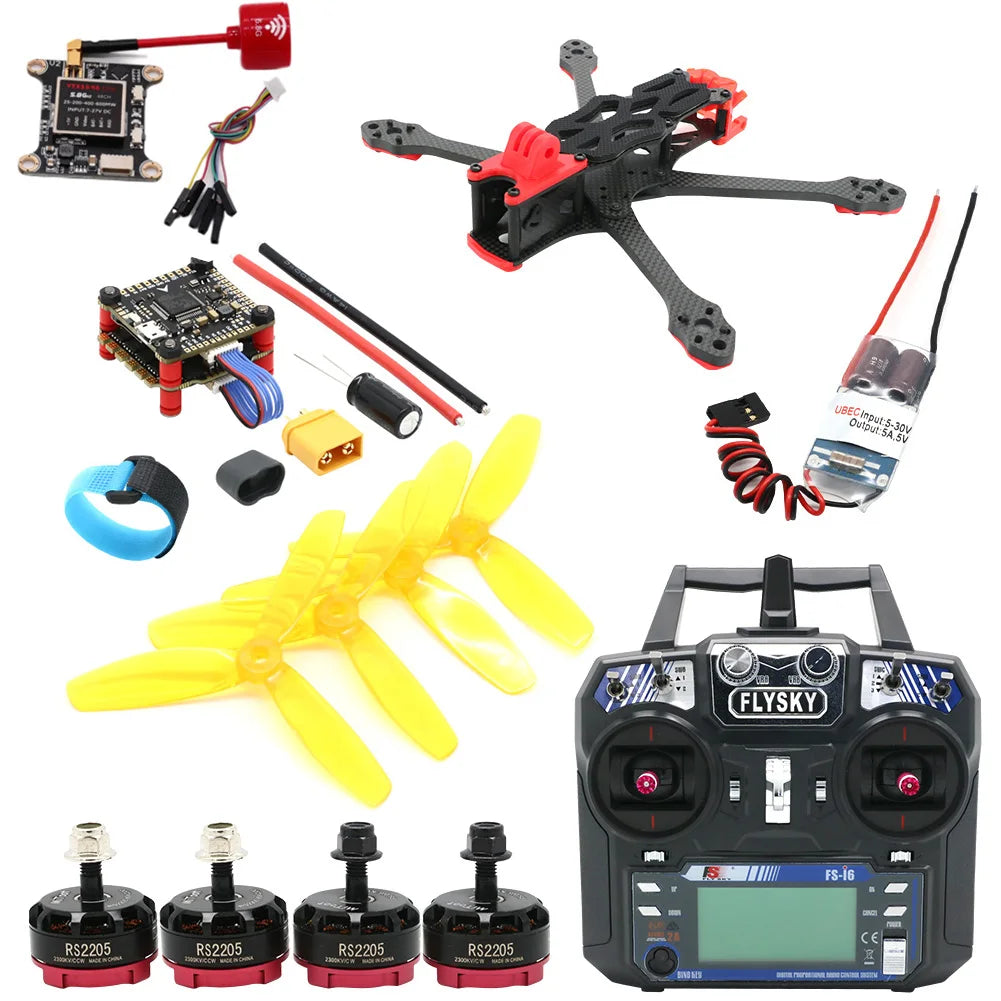

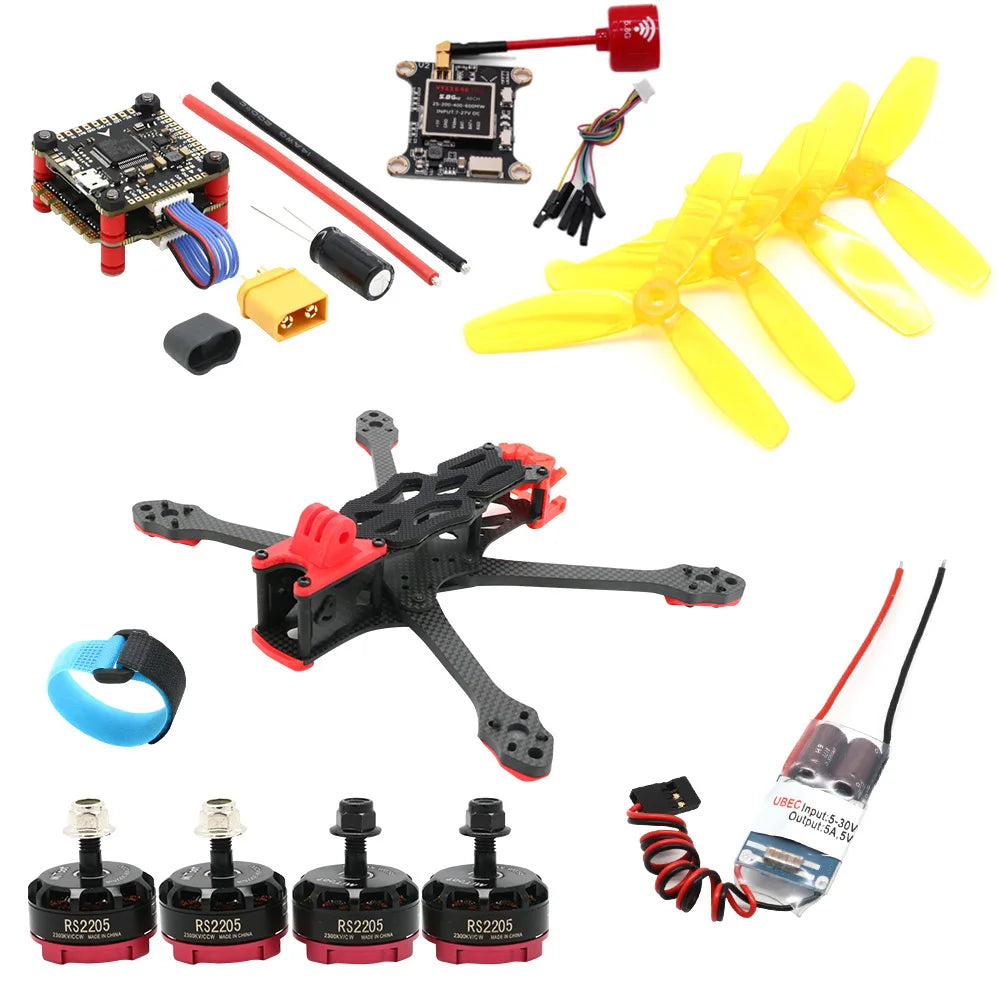

5 Inch 250mm 5" Carbon Fiber Frame Kit 2206 2300KV Motor 45A 4in1 ESC & F4 V3S Plus FOR APEX DC HD FPV Freestyle RC FPV Drone
$313.99

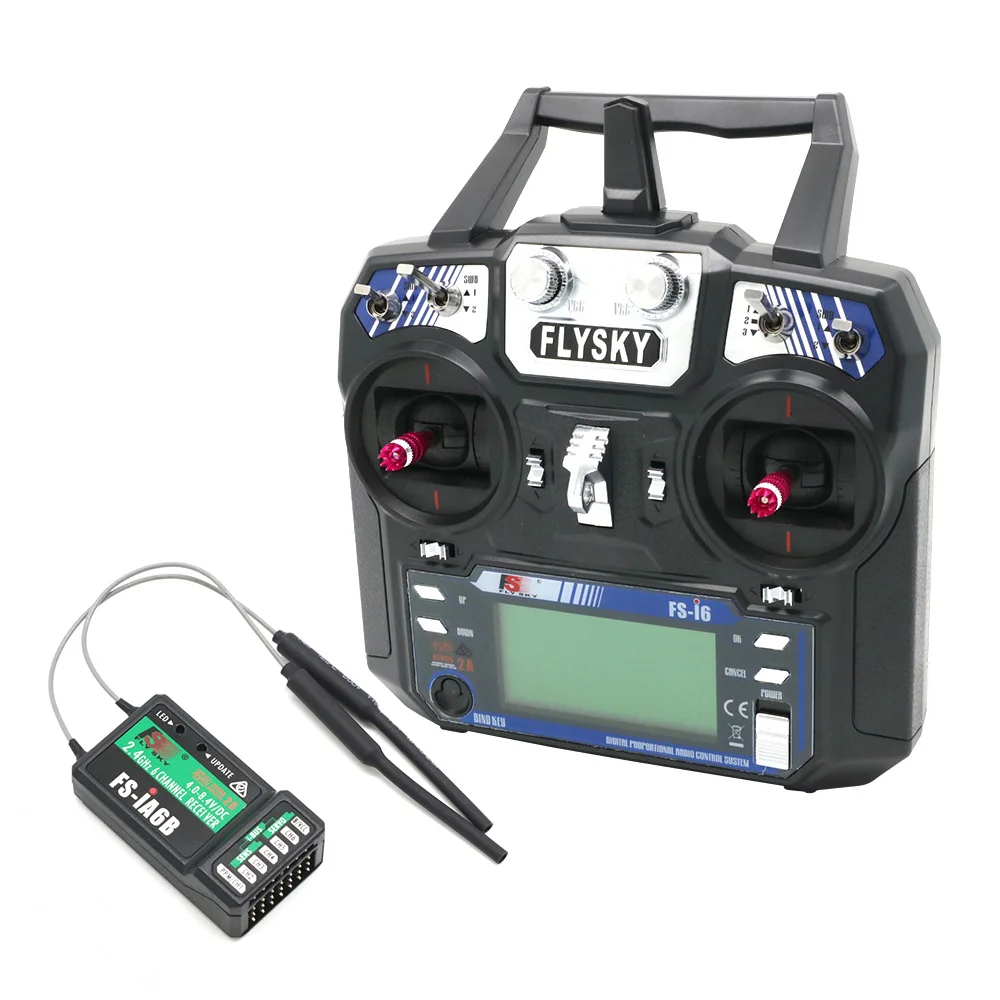

Brand Name: FlySky
Item Name: FS-i6 transmitter
Channel: 6
Model Type: fixed wing/helicopter/glider
Channel resolution: 1024 steps
Low voltage warning: less than 4.2v
ANT length: 26 x 2mm( dual antenna)
Weight: 392g
Battery: 6v 1.5AA x 4(not included)e
Size: 174 x 89 x 190 mm
Color: black
Certificate: CE ,FCC
RF specification:
RF Range: 2.405 - 2.475GHz
Bandwidth: 500khz
RF Power: less than 20dBm
RF mode: AFHDS 2A
Modulation type: GFSK
RX Sensibility: -105dBm
Receiver specification:
Channel: 6
Model type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 6.4g
Antenna lenght: 26mm
Size: 40.4 x 21.1 x 7.35 mm
Certificate: CE ,FCC

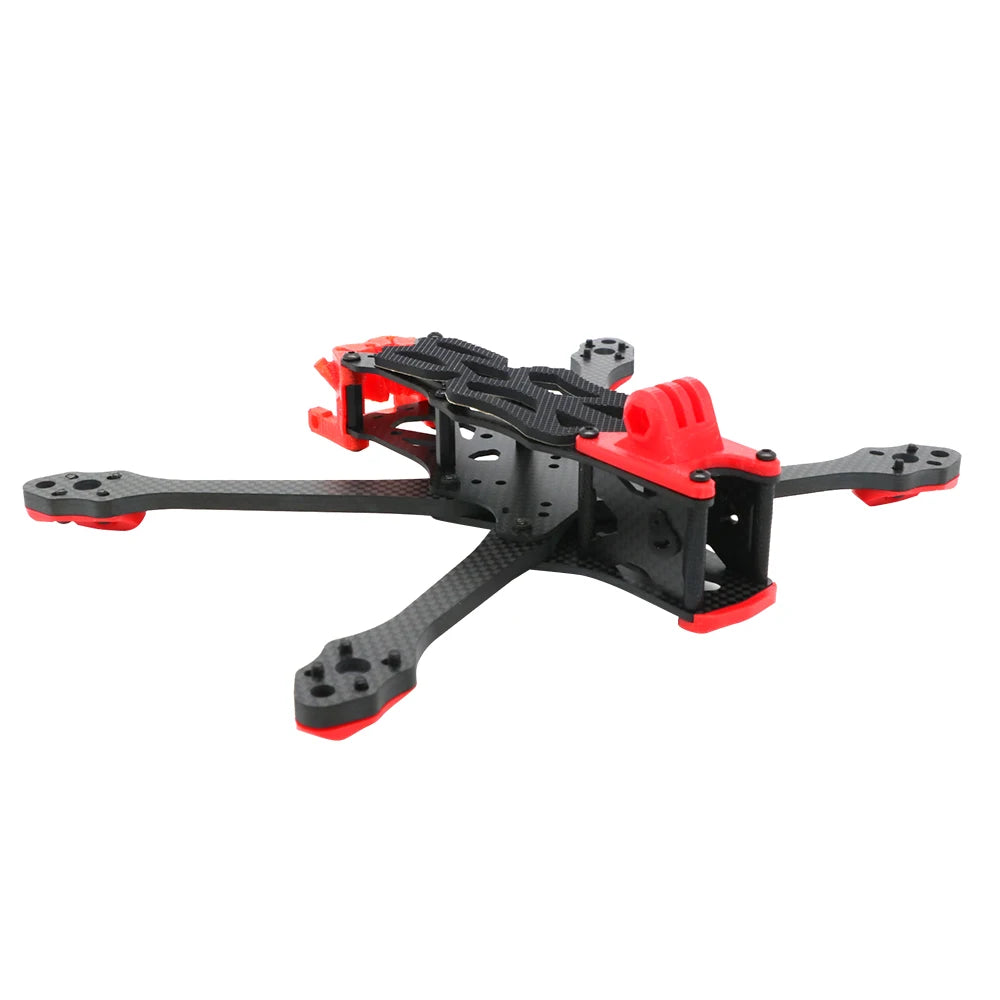

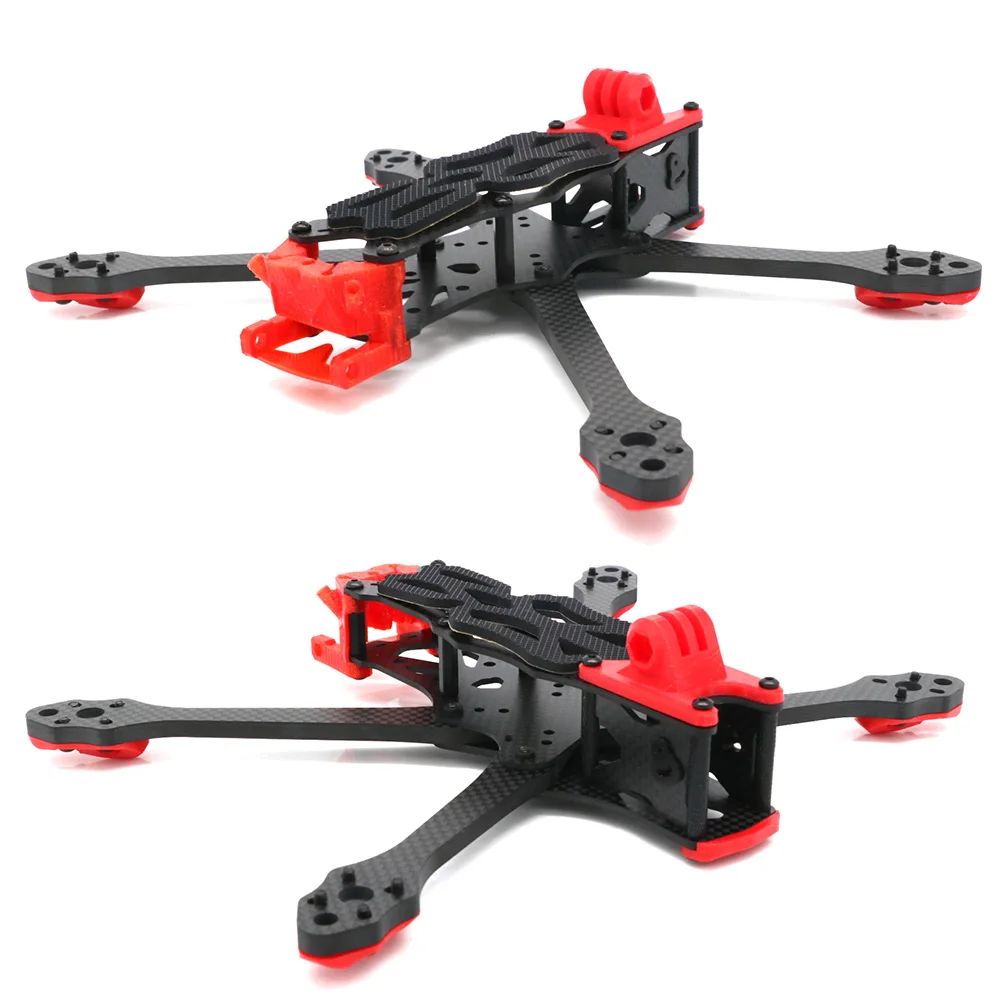

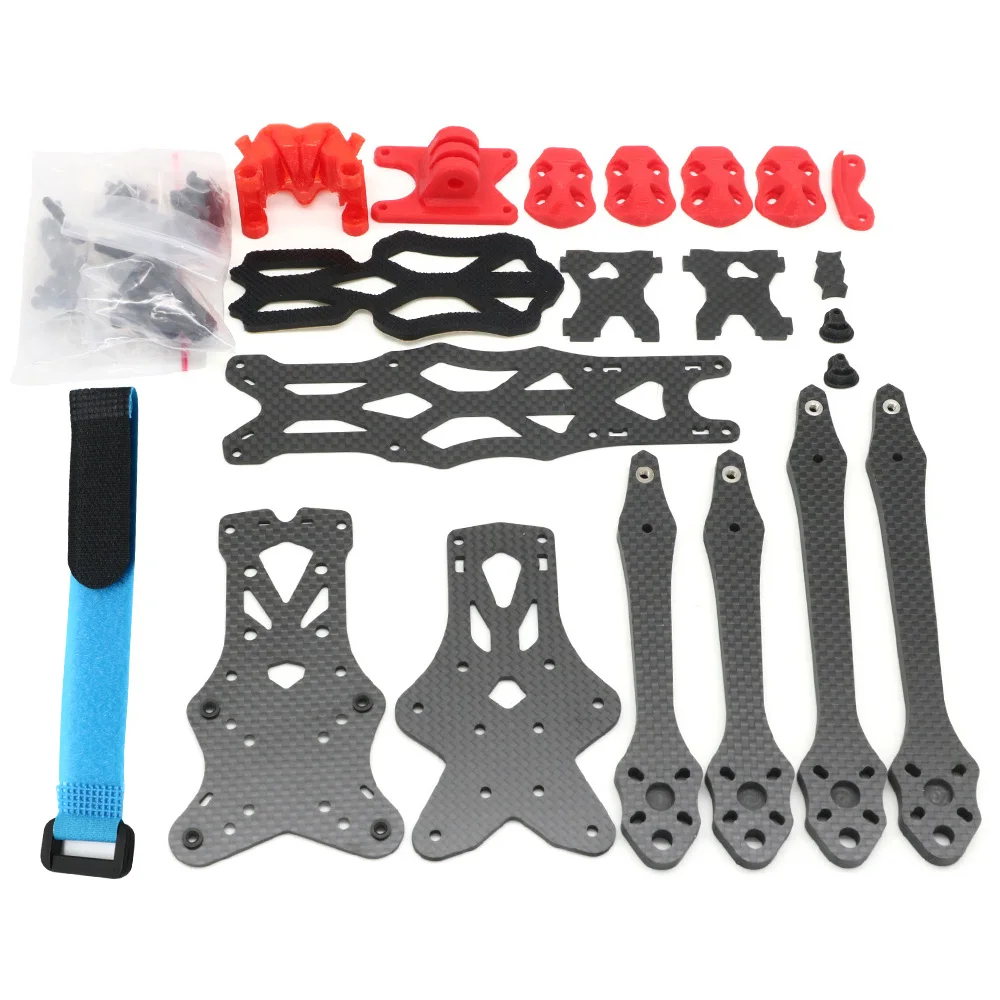

APEX DC / DC HD 5Inch 250mm Carbon Fiber Frame Kit
Parameter:
Propeller: 5Inch
Weight about: 138g
Wheelbase: 240mm
Arms plate: 5.5mm
Top plate: 2.0mm
Bottom plate: 2.5mm
Side plate: 2.0mm
Description:
The
APEX DC5 by modifying only the upper and lower main plates we retained
full compatiblity with regular Apex arms, using standard 5" arms at the
front and standard 6" arms at the back.
APEX DC5 by modifying only the upper and lower main plates we retained
full compatiblity with regular Apex arms, using standard 5" arms at the
front and standard 6" arms at the back.
CADDX VISTA ISOLATION
A
major drawback of the Caddx Vista system is that the body of the unit
is grounded, this can cause the conductive carbon fiber plates and frame
hardware to be grounded too. In an ideal world this is not necessarily a
problem, however in the real world it's an accident waiting to happen.
major drawback of the Caddx Vista system is that the body of the unit
is grounded, this can cause the conductive carbon fiber plates and frame
hardware to be grounded too. In an ideal world this is not necessarily a
problem, however in the real world it's an accident waiting to happen.
Included
with the ApexDC are newly redesigned 3D printed insulation inserts.
This keeps the camera firmly locked in place and reduces vibrations,
whilst ensuring it is electrically isolated from the frame.
with the ApexDC are newly redesigned 3D printed insulation inserts.
This keeps the camera firmly locked in place and reduces vibrations,
whilst ensuring it is electrically isolated from the frame.
Recommended configuration: ( Not included)
Flight control: RF/KISS/F3/F4/F7
Motor: 2204/05/06/07/2305/2306/2307
ESC: 20-50A
Battery: 3-6S 1500-2200MAH

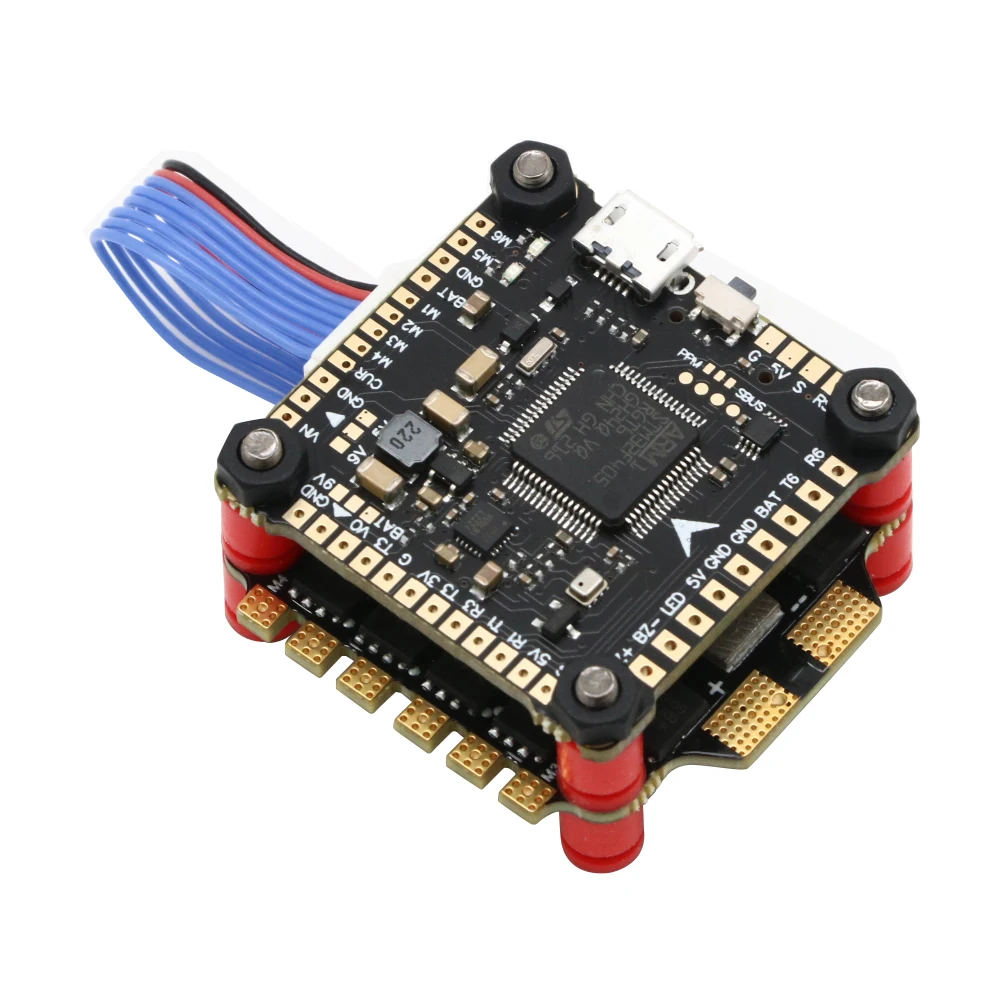

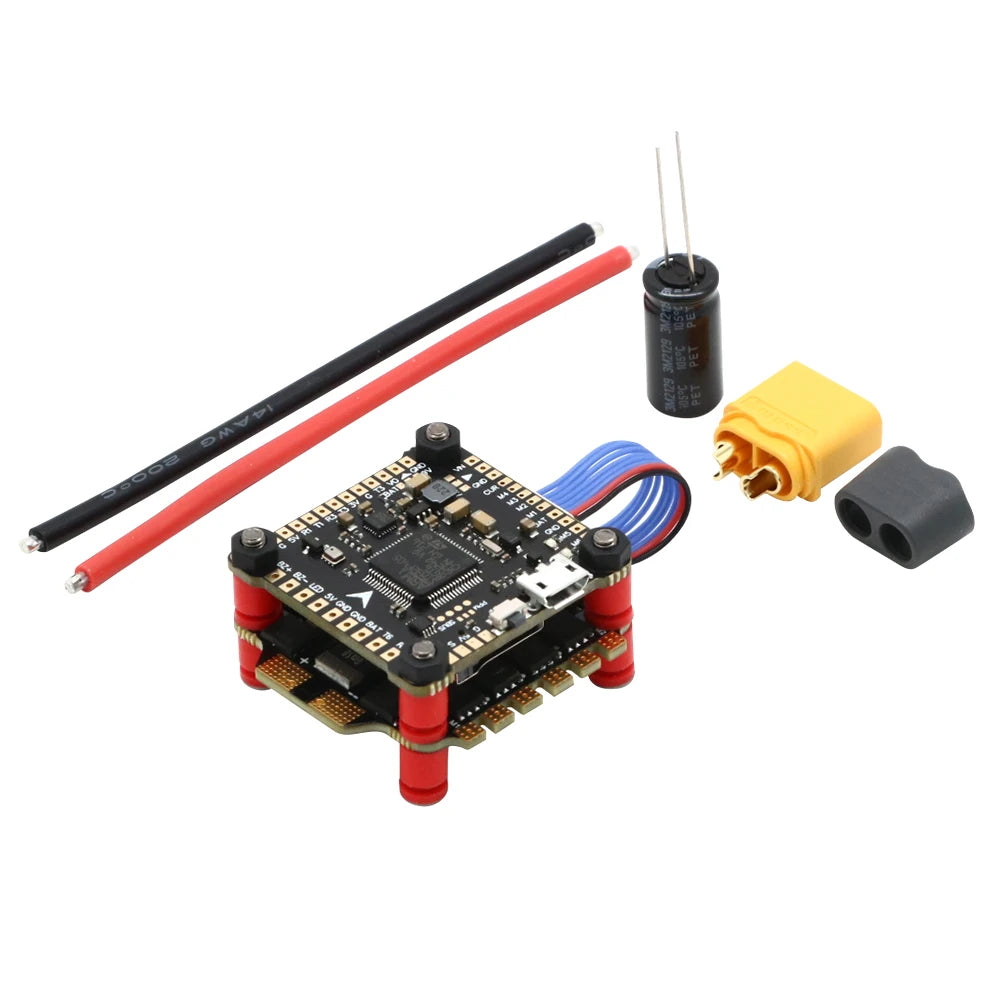

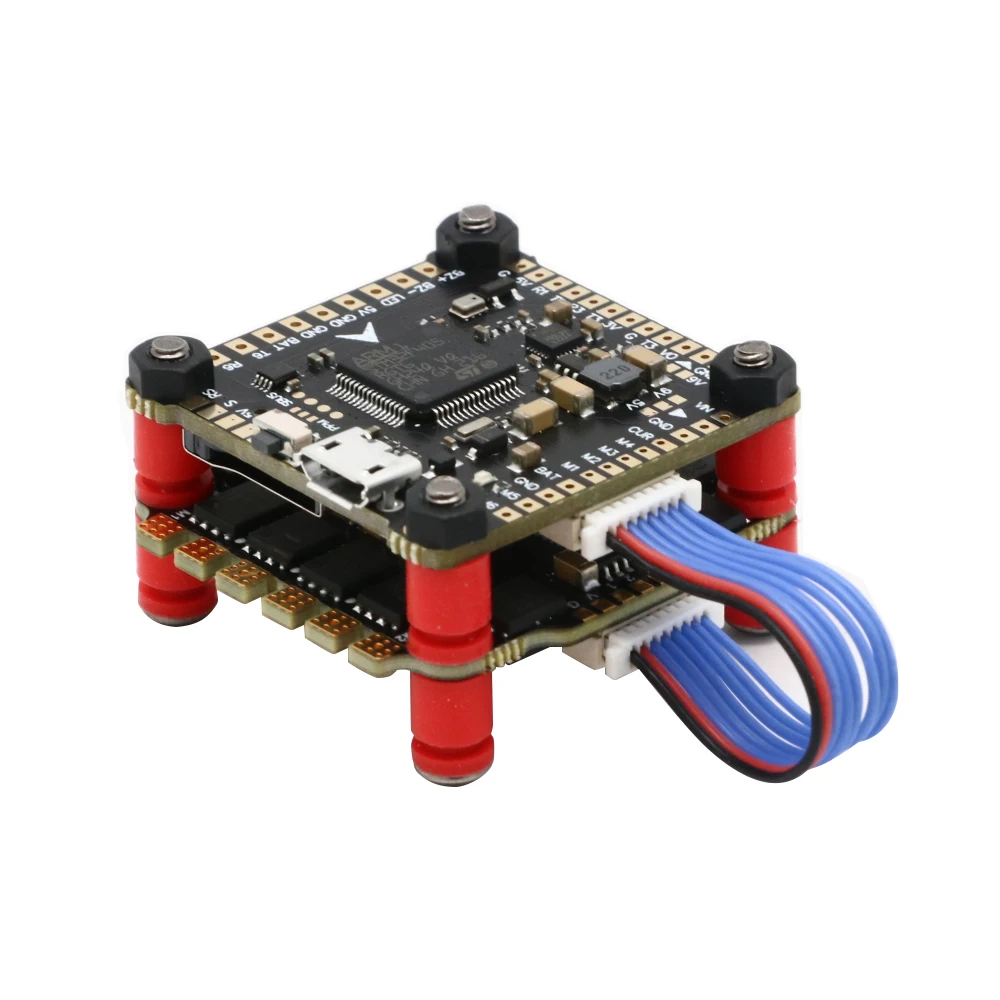

F4 V3S PLUS FC
Item name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:BMI270
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
BEC:5v3a 9V3A
On-board video filters (only 5V to VTX and camera)

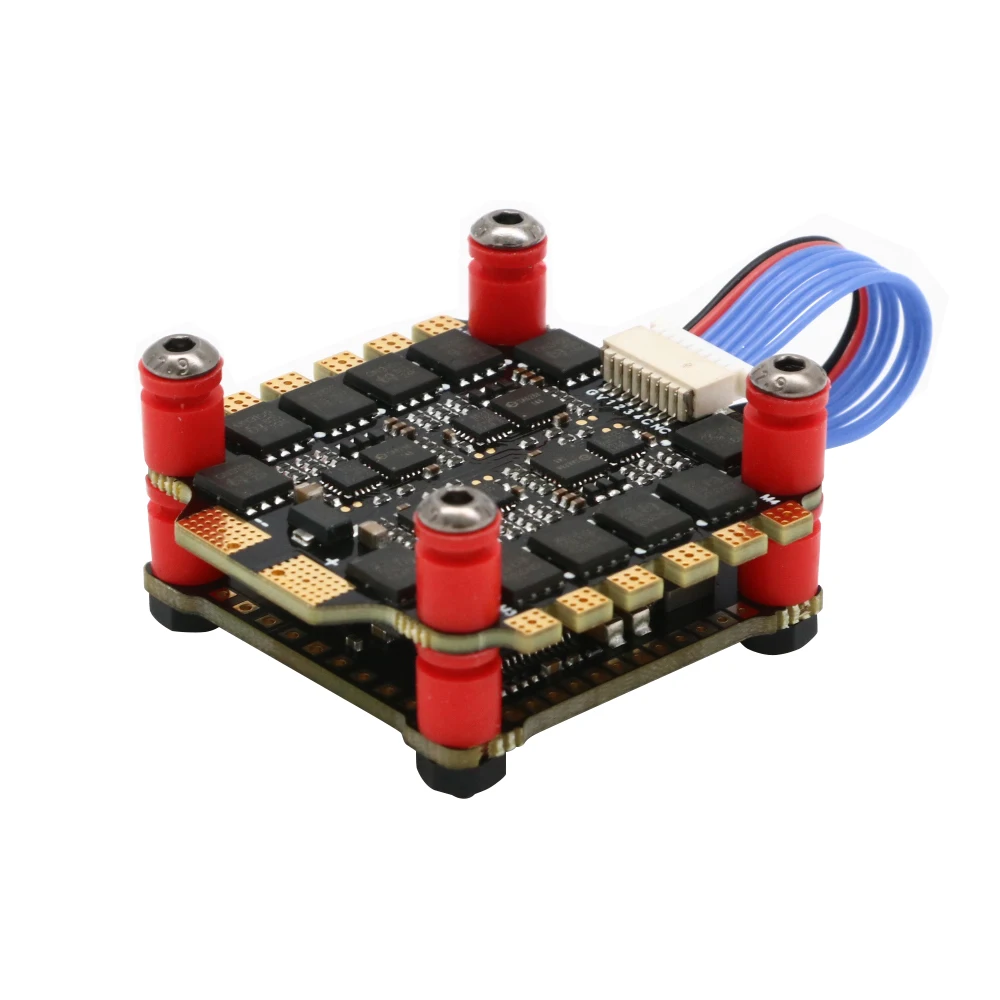

45A ESC
BLHELI_S 45A 4IN1 3-6S Brushless ESC Support DShot300-600/Multishot/Oneshot/PMW 30.5*30.5mm For RC FPV Racing Drone
45A 4-in-1 ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the shock-absorbing ball)
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PMW
Current sensor: Support

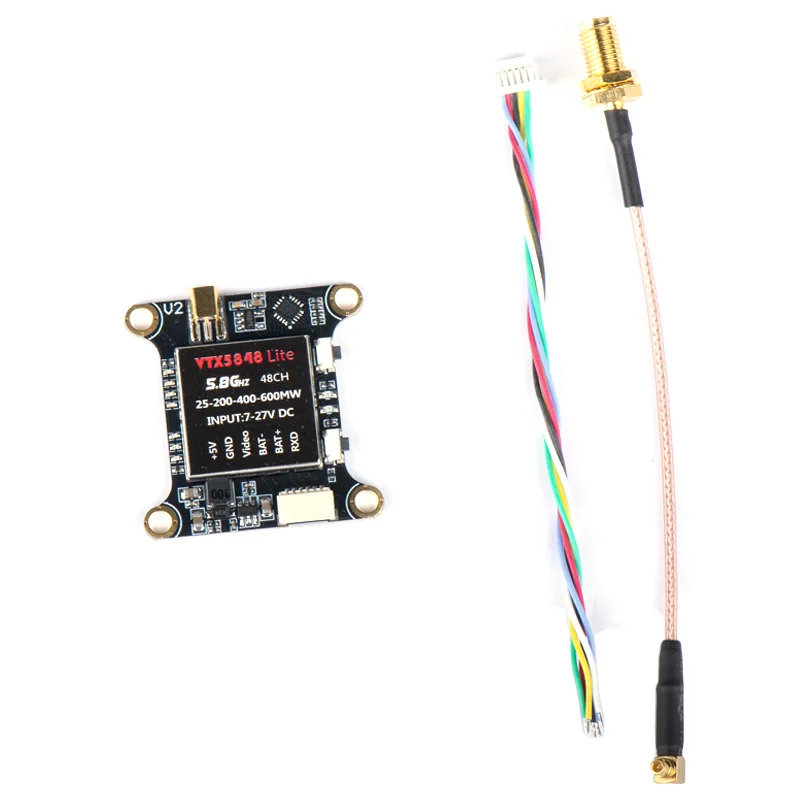

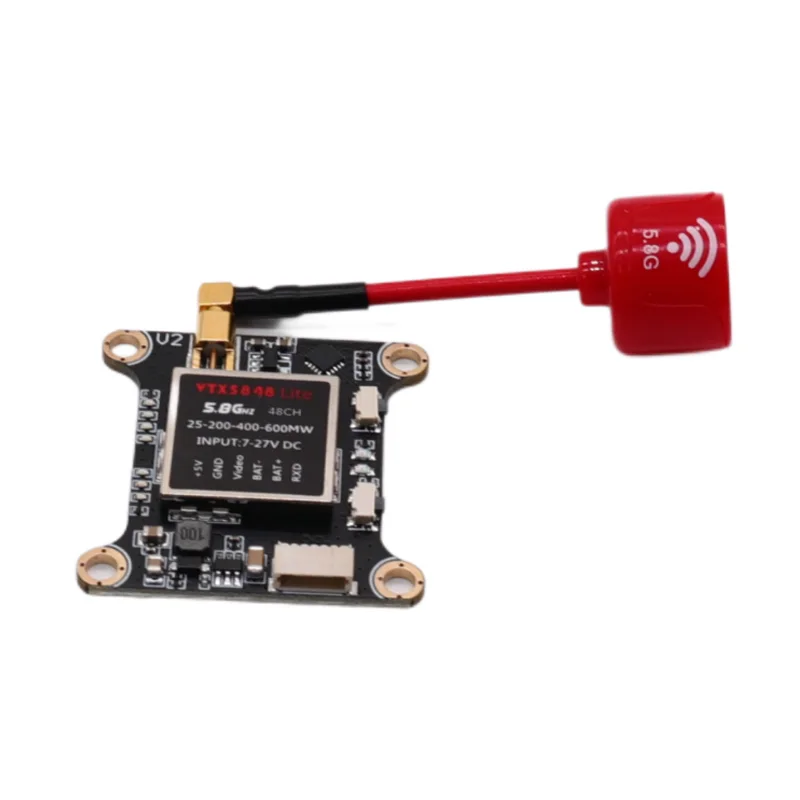

Item name: VTX5848 LITE FPV video transmitter
Input voltage: DC 7-27V
Input current: 3s or 4s battery, 600mW=360 MA±10MA
Output voltage: DC 5V 1A
Output power: 25/100/200/400/600mW switchable
Channel: 48CH
Frequency switch: manual button/OSD (simultaneous support)
Connector: MMCX
Size: 36x36x9mm
Mounting hole: 30.5x30.5mm, M3
Features:
-Stable output power, long transmission distance
-Fast 5-speed power switch, independent two red indicator, indicating the current output power 25/ 200/ 400/ 600MW

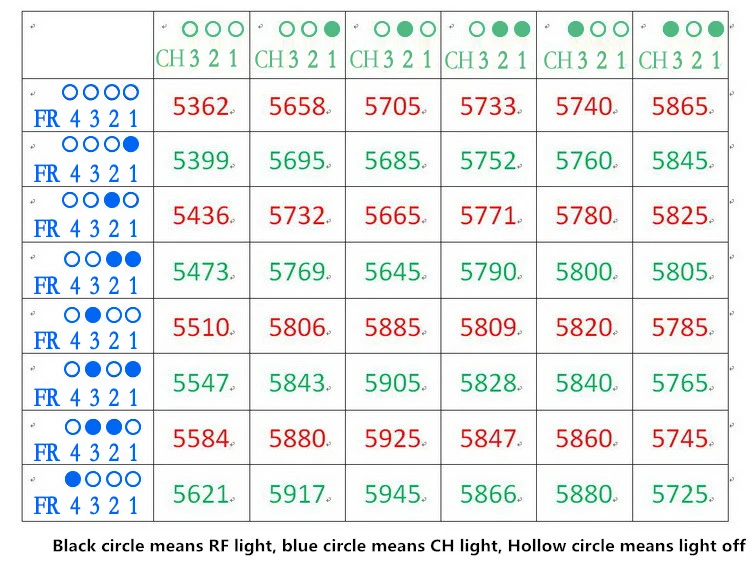

-Using 4(blue)*3(green) LED display 48 channel
-Support OSD signal remote frequency control, support PIT mode ( omW output power only can be open in OSD)
-With power filter
-Antenna using MMCX to SMA reducing the space
-Strong power chip, input up to 27V, output 5V/1A low ripple, less interference
-30.5mm*30.5mm mounting hole distance, suitable for CC3D, NAZE32, F3, F4, F7 flight controller

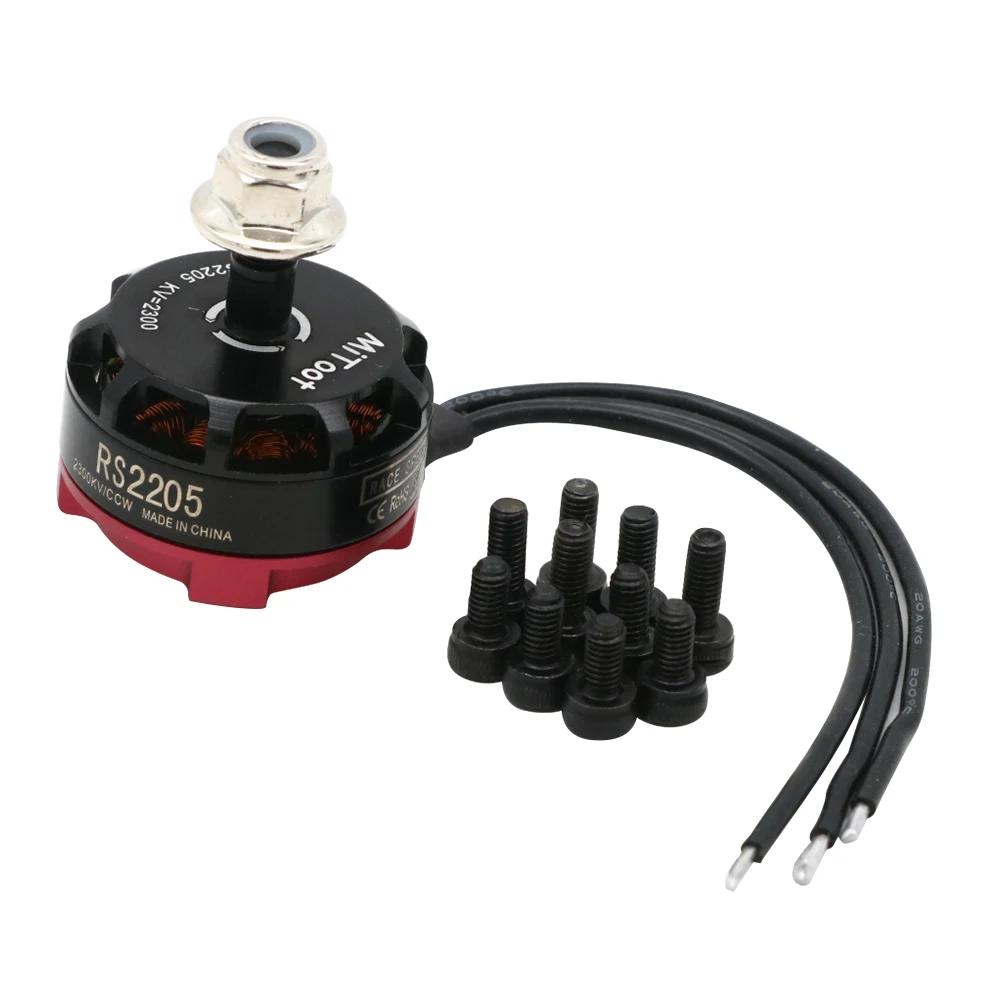

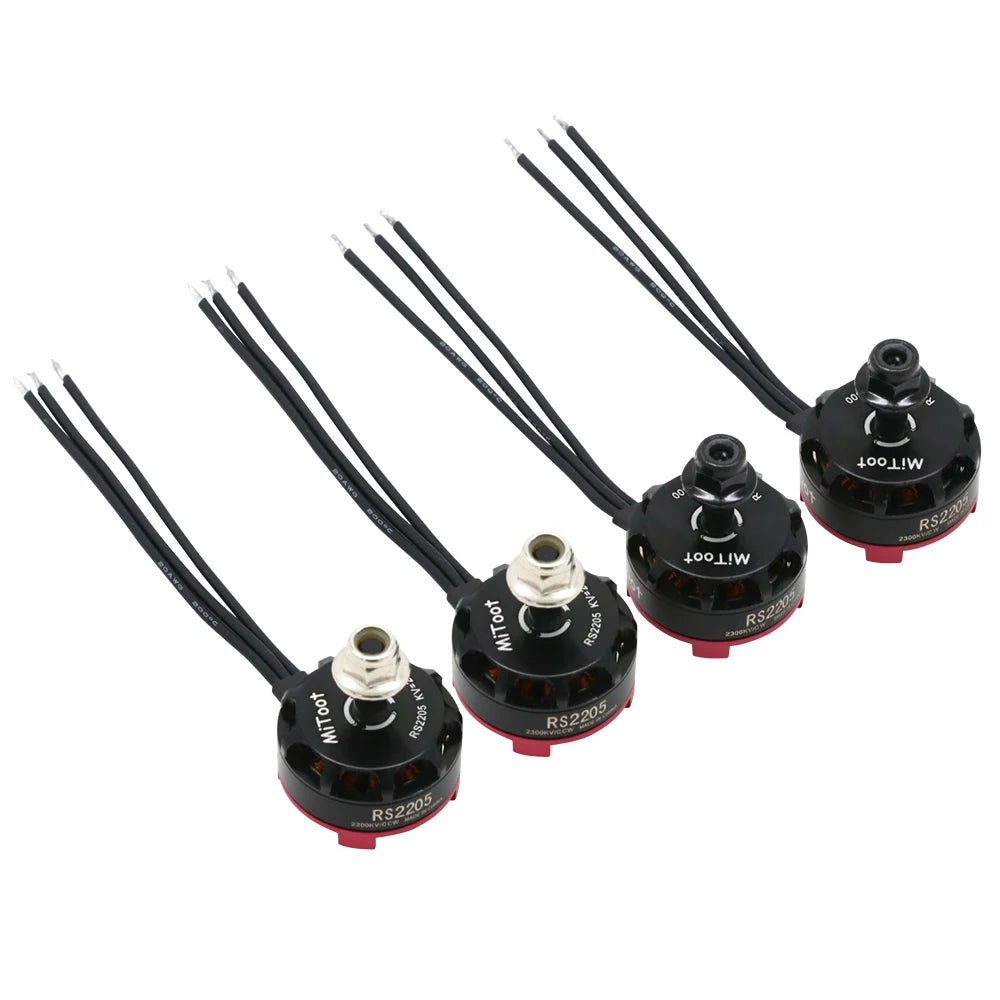

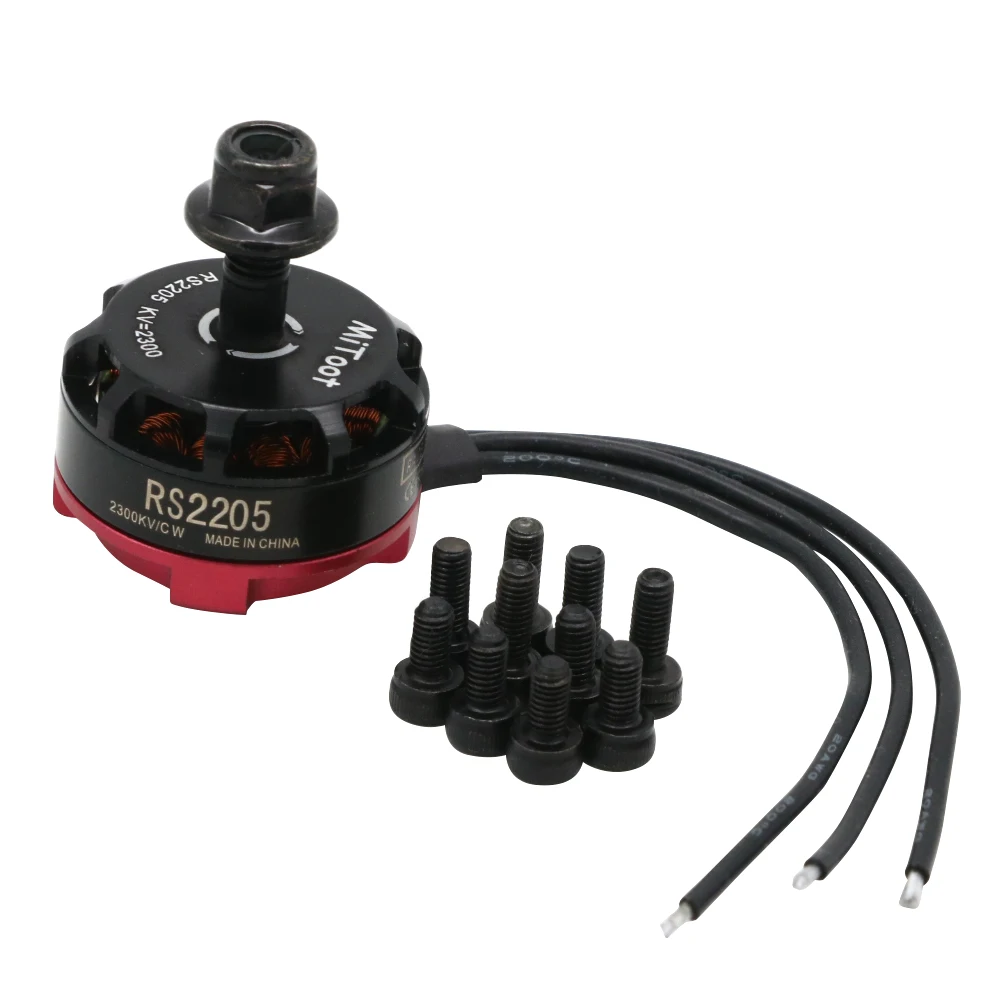

Brands:Mitoot
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Color: Red
Length: 31.7mm
Shaft: M5
KV: 2300
Max Thrust about: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts
