Radiolink M435 4-Rotor 3KG Payload Heavy Lift Drone 120km/h Flight Speed, Routes Planning And Autopilot, 4KM Long Range RTF

Radiolink M435 4-Rotor 3KG Payload Heavy Lift Drone 120km/h Flight Speed, Routes Planning And Autopilot, 4KM Long Range RTF

$1,009.99
Color



M435 fly with Load

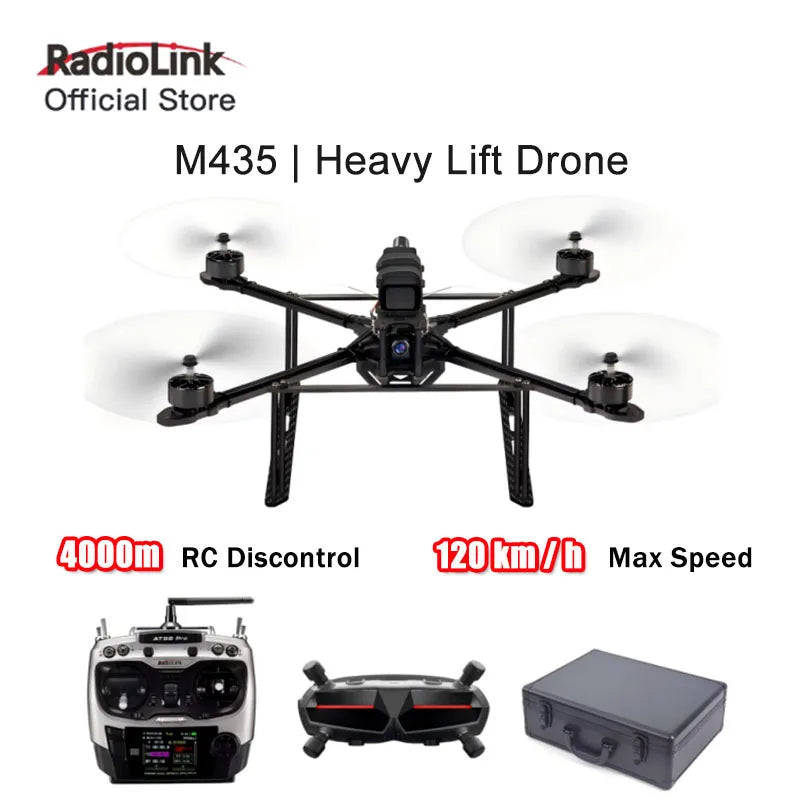

Radiolink M435 4-Rotor 3KG Payload Heavy Lift Drone with 120km/h Flight Speed, Support Routes Planning And Autopilot, 4KM Long Range RTF


Main features:

  • 3KG Payload Heavy Lift Drone

  • 4000 Meters Control Distance

  • 120km/h Max Flight Speed

  • 12m/s Max Wind Speed Resistance

  • 10-minute with 3KG Payload

  • 28-minute without Load

  • Auto Flight Follow the Waypoints

  • 50 centimeters Positioning Accuracy

  • Multiple Types of Payload Modes

  • Comprehensive Technical Support

M435 RTF Kit without FPV:



Power System


Remote Control System


Charge System



M435 RTF FPV-- HD Video Transmission:





M435 RTF FPV--Analog Video Transmission:

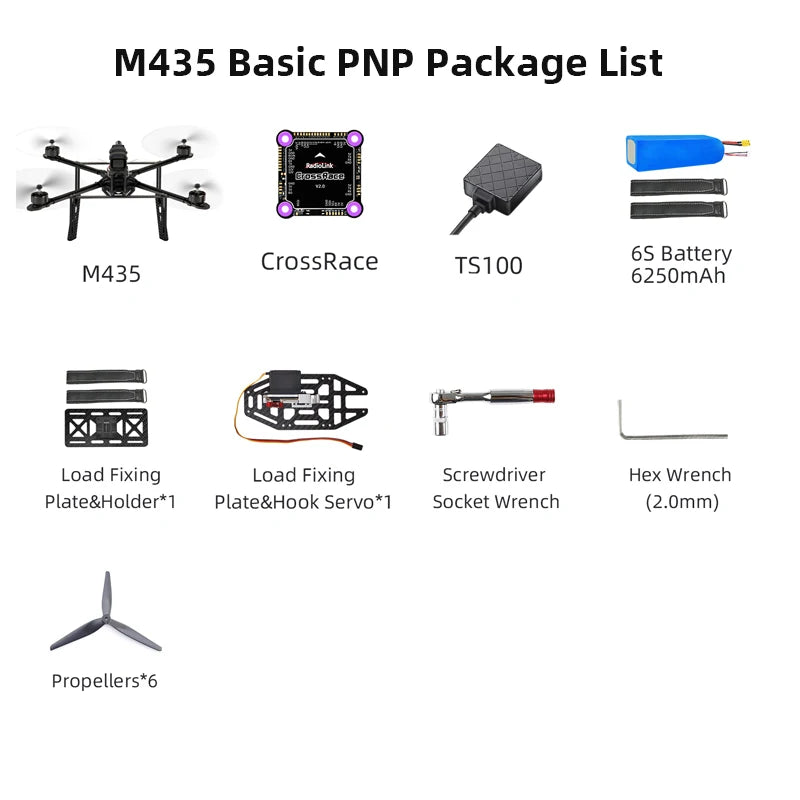

Packaging List:

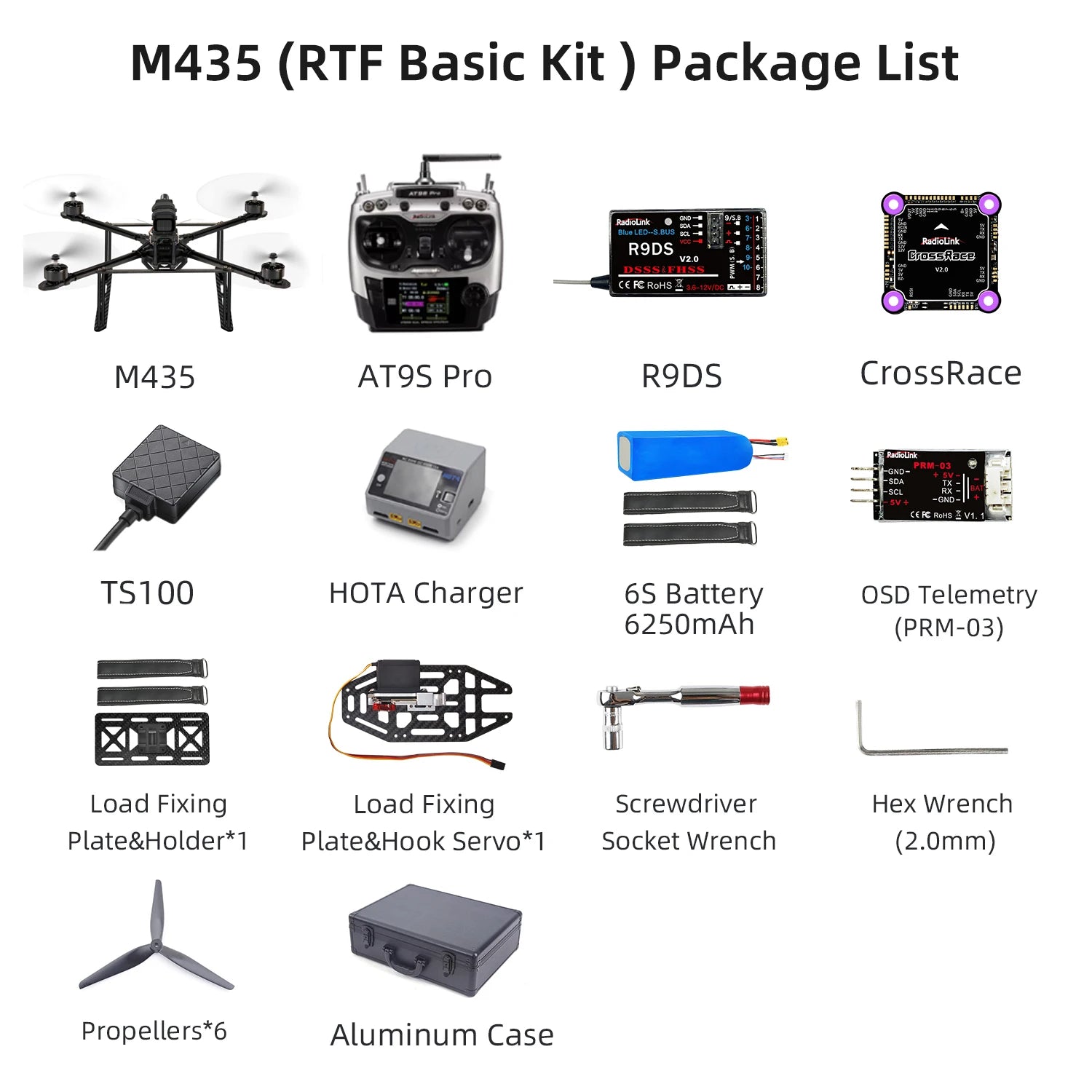

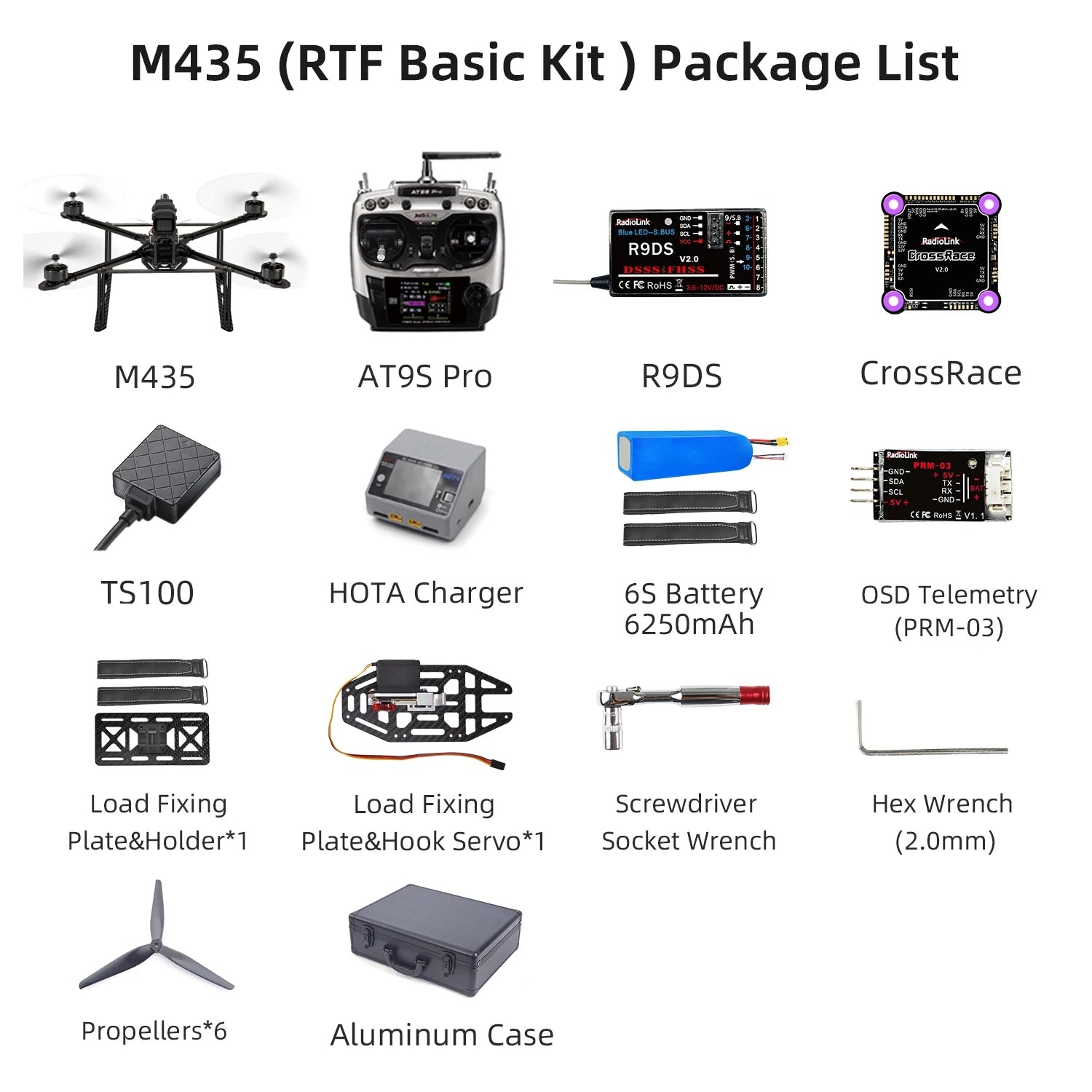

RTF Kit without FPV:

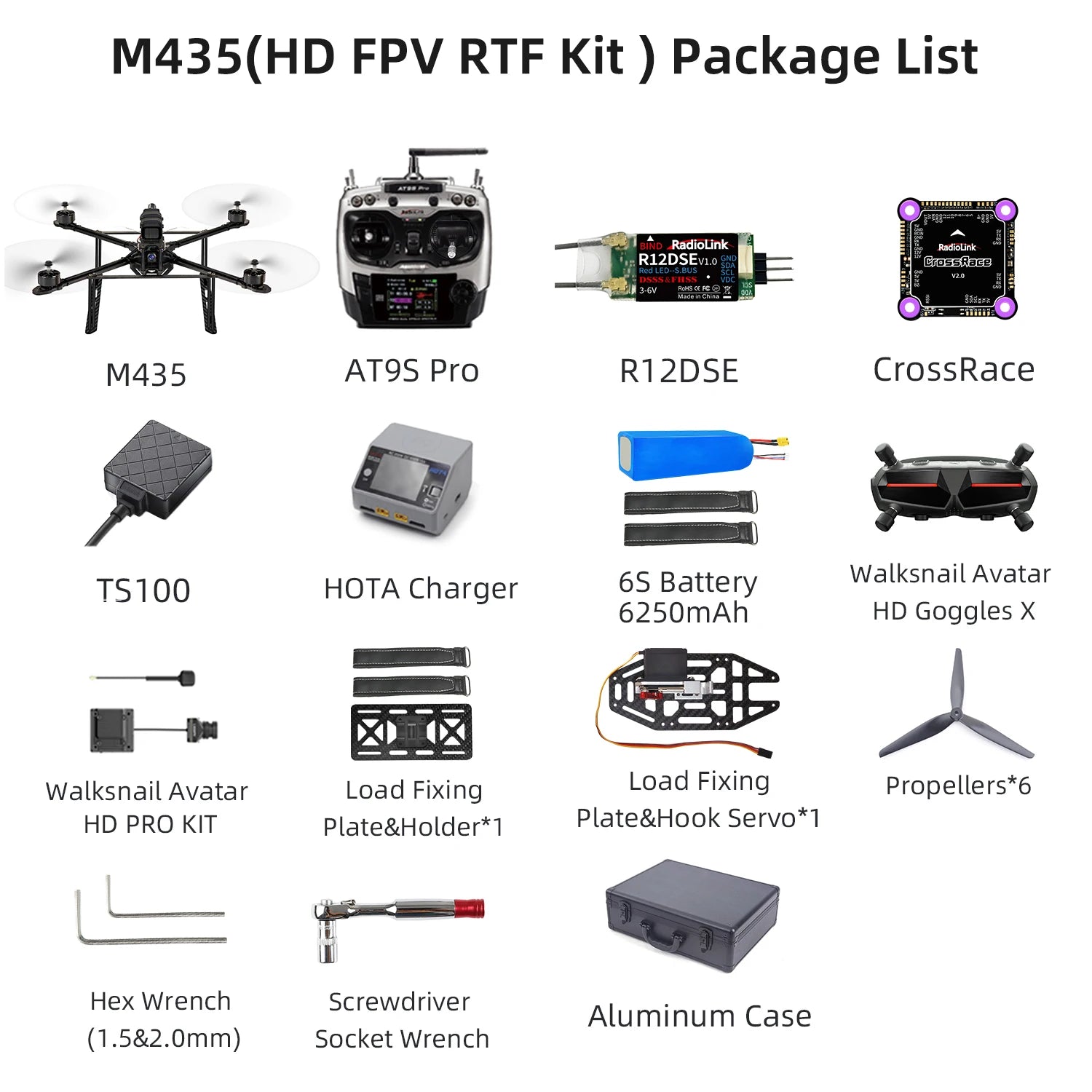

RTF FPV Kit (HD Video Transmission):

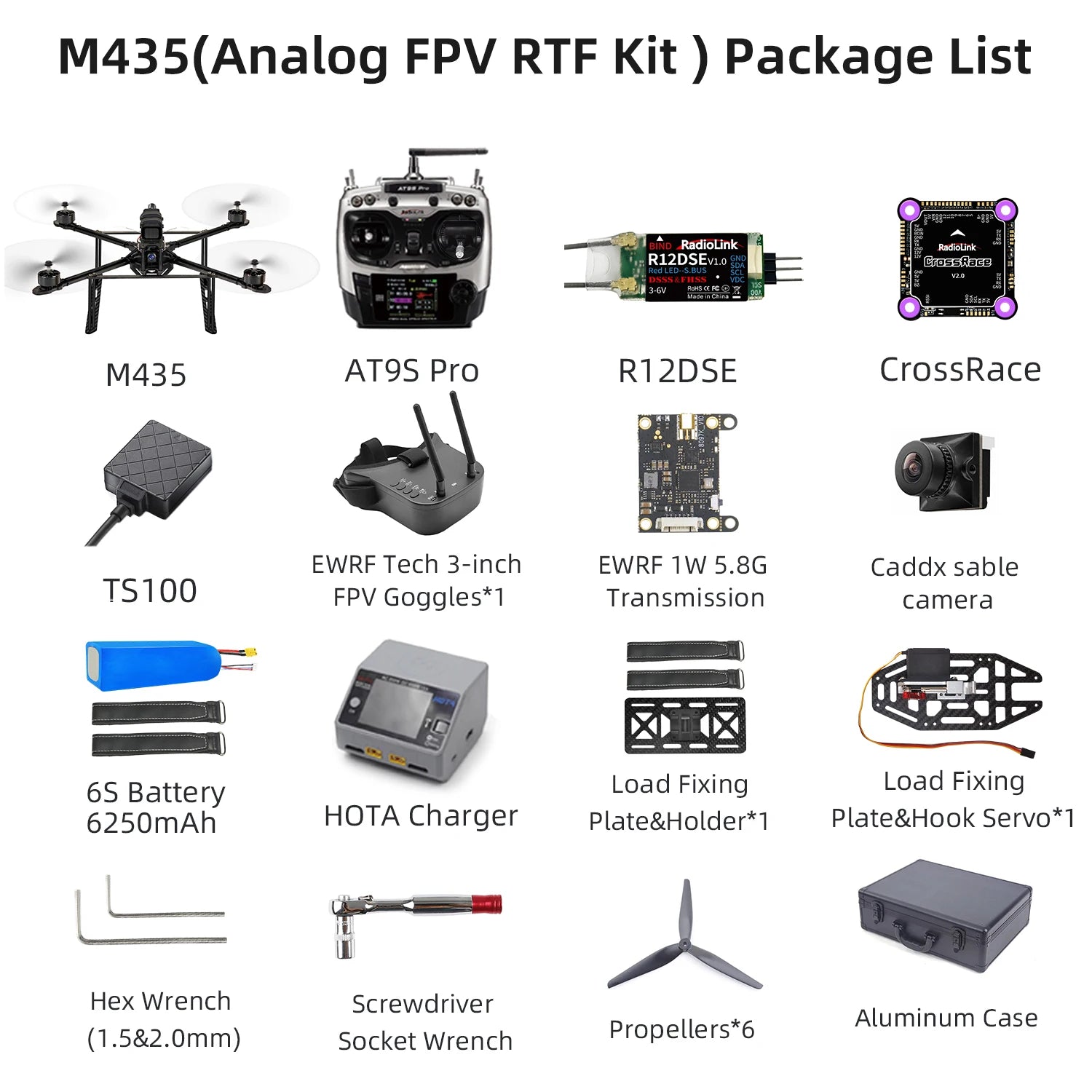

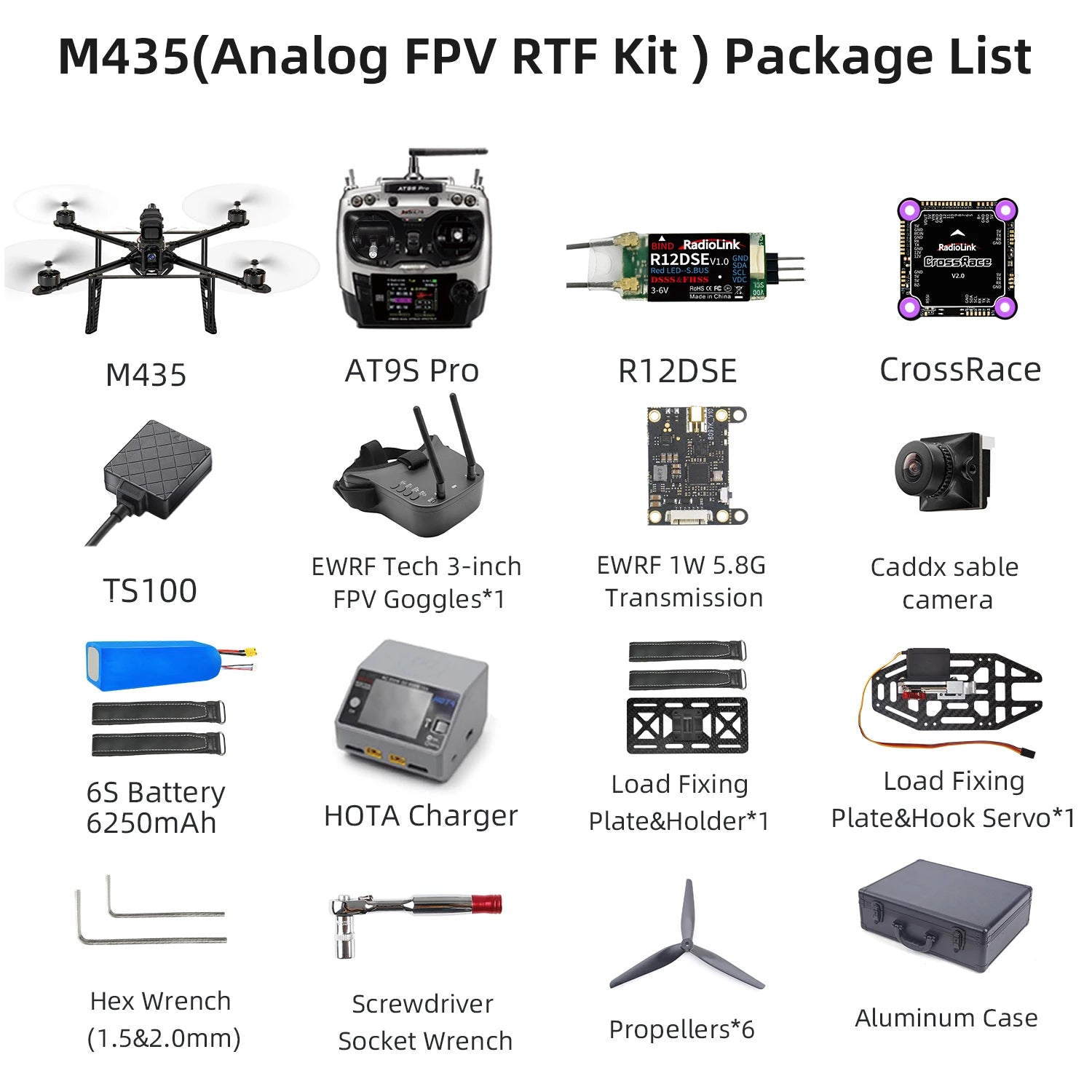

RTF FPV Kit (Analog Video Transmission):





Note

Q: If it includes air drop system?

A: Yes. There is a switch on the AT9S PRO, SWB (controls channel 6), which is set to turn on or off the airdrop function by default. The principle is to operate the SWB button, the hook opens and fits together with the airdrop strap plate, and the airdrop strap can be installed to load items. When the hook and the airdrop strap are not combined, you can load items directly on the hook and directly operate the SWB to open and close the hook to drop items.

Q: All kits are Ready to use & fly?

A: Yes. All 3 versions are ready to use & fly with all necessary accessories, such as transmitter(AT9S Pro)/FC (CrossRace) /battery, etc. The difference is whether it is FPV, and the version of FPV (HD image transmission or Analog image transmission).




M435 Specifications:

     Aircraft:

  • Weight of Drone (Without Battery): 703g

  • Takeoff Weight Without Load: 1425g

  • Payload: 3000g

  • Dimension Frame: 355*355*36.5mm

  • Diagonal Length: 435mm

  • Flight Time: 10-minute with 3KG Payload, 28-minute without load

  • Flight Speed: 120(±20)km/h(Without load)

  • Frame Name: FlyFishRC Matador XL10 Frame

  • Material Frame: Carbon fiber and plastics

  • Max Ascent Speed: (Alt-Hold Mode or Pos-Hold Mode), 11m/s (Stabilize Mode)

  • Max Descent Speed: 2.8m/s (Alt-Hold Mode)

  • Max Horizontal Speed (at sea level, no wind): 47km/h (30°)/63km/h (35°)

  • Max Takeoff Altitude: 4000 meters

  • Max Tilt Angle: 30°/35°

  • Operating Temperature: -30℃-90℃

  • Flight Distance: 4000 meters (AT10II/AT9S Pro)/2000 meters (T8S/T8FB), maximum range is tested in an unobstructed area free of interference

  • Max Service Ceiling Above Sea Level:  Same as the flight distance, the flight distance and height can be set as you need in GeoFence of Mission Planner

  • Maximum Wind Resistance: Moderate breeze

  • Flight Modes: It is default with Stabilize Mode, Alt-Hold Mode, Pos-Hold Mode, and RTL, 13 modes can be set in the Mission Planner including Auto Mode, Guided Mode, flight follow the waypoint, etc.

  • Positional Accuracy: Up to 50 centimeters

  • Flight Control System: Radiolink CrossRace

  • Global Navigation Satellite System: TS100, BD1+GPS/L1+Galileo/E1+GLonass/G1, and quad satellite system operation at the same time are available.

     Power System:

  • Electronic Speed Control (ESC): FLYCOLOR 55A 4in1 ESC

  • Motor: SZ-SPEED 2810/2812 900KV Motor

  • Battery: FULLYMAX 6250mAh 22.2V 25C XT60 Battery

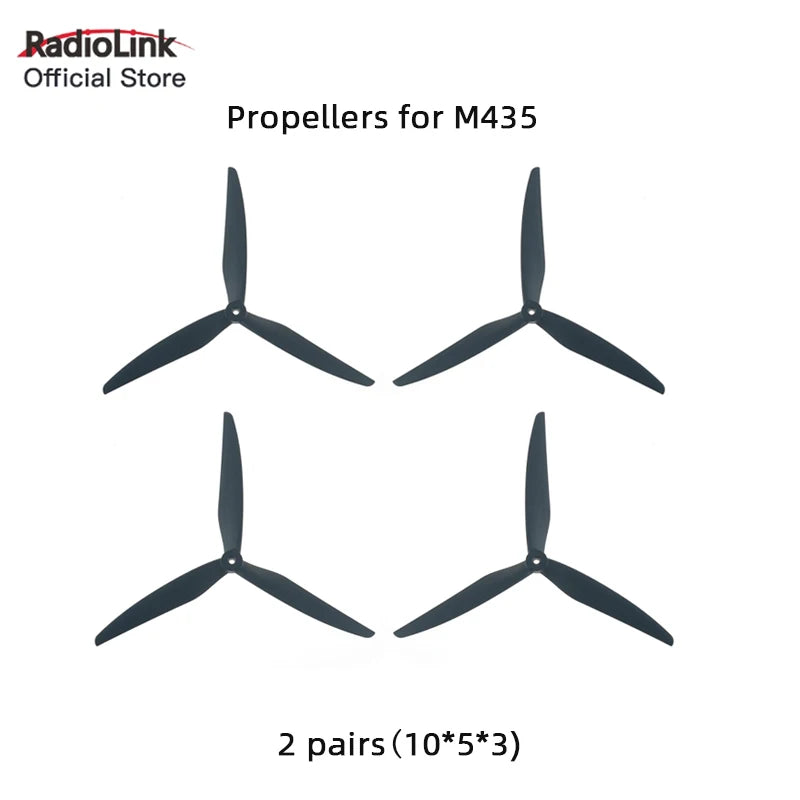

  • Propeller: Gemfan 10*5*3 Propellers

     Remote Control System:

  • Transmitter: 12 channels transmitter AT9S Pro

  • Receiver: R12DSM Or R9DS

  • Frequencies Band: 2.4GHz ISM(2400MHz~2483.5MHz）

  • Transmission Power: <100mW(20dbm)

  • Operating Temperature:  -20° to 85° C (-4° to 185° F)

  • Control Distance: 4000 meters, maximum range is tested in an unobstructed area free of interference

    Charger System:

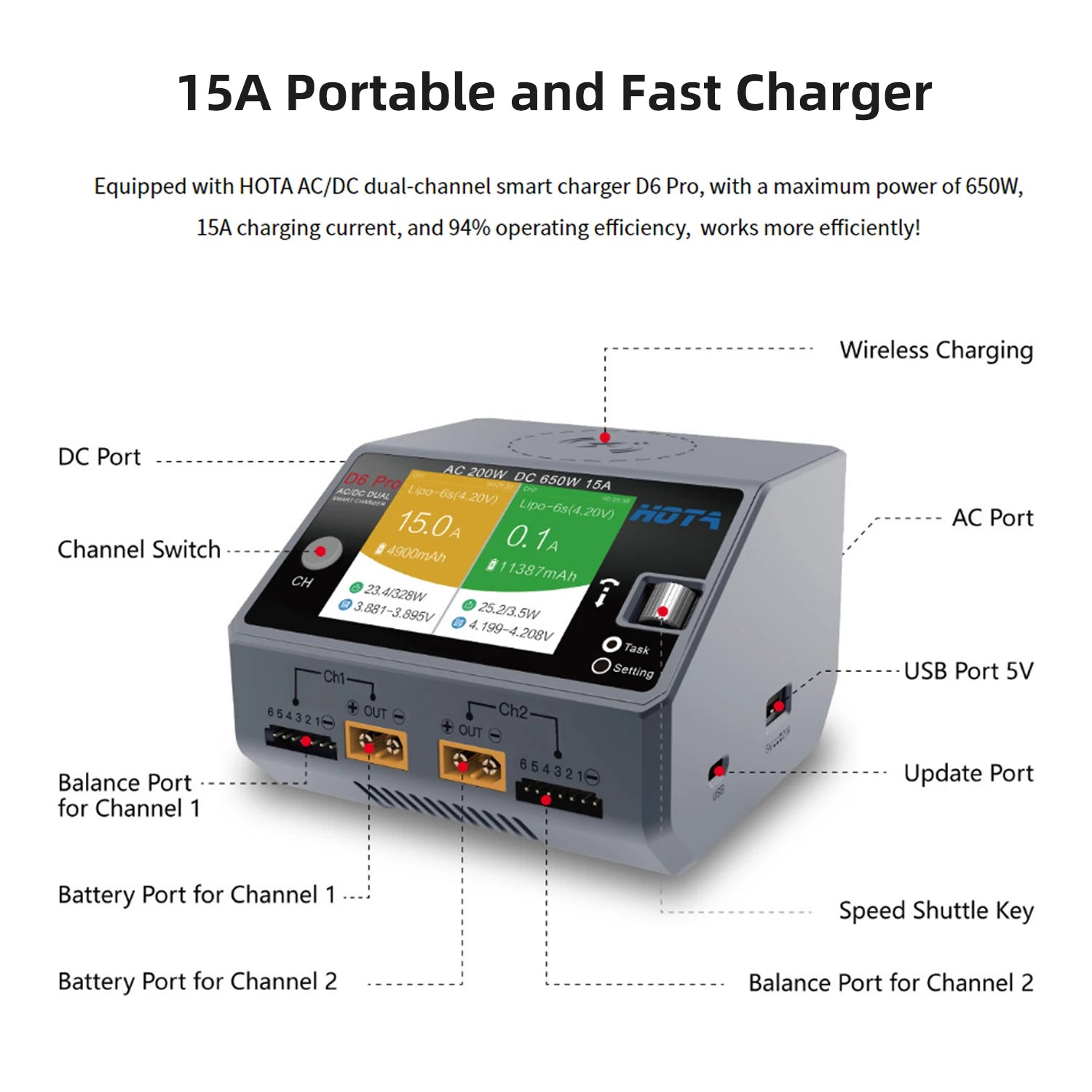

  • Charger: HOTA D6 Pro

  • Charging Input: AC 100~240V / DC 6.5~30V

  • Compatible Battery: LiHV/LiPo/LiFe/Lilon/Lixx : 1~6S, NiZn/NiCd/NiMH : 1~16S, Smart Battery : 1~6S, Lead Acid(Pb) : 1~12S(2~24V) Eneloop : 1~16S

  • Charging Current: 0.1~15A x 2

  • Power: DC 325W x 2 @ input voltage > 24V; AC 200W

    Other Accessories Specifications:

  • Image Transmission: Caddx walksnail Avatar HD PRO KIT

  • Resolution:1080P/60fps

  • Ultrasonic Sensor: Radiolink SU04 to realize obstacle avoidance of maximum 2 directions (forward/backward/left/right/upward) and altitude hold downward /SUI04 to realize obstacle avoidance of 5 directions (forward, backward, left, right, upward) and altitude hold downward

  • Detected Distance: 40cm-450cm (15.75”-177.17”)

  • Detecting Precision: 0.4cm (0.16”)

  • Beam angle: 60° （transceiver）

  • SiK Radio Telemetry: 915Mhz/433Mhz

More Features:

  • Can Reach to Hard-to-reach Locations: Drones offer access to hard-to-reach locations like remote, rural, or disaster-stricken areas that are typically inaccessible through conventional methods.

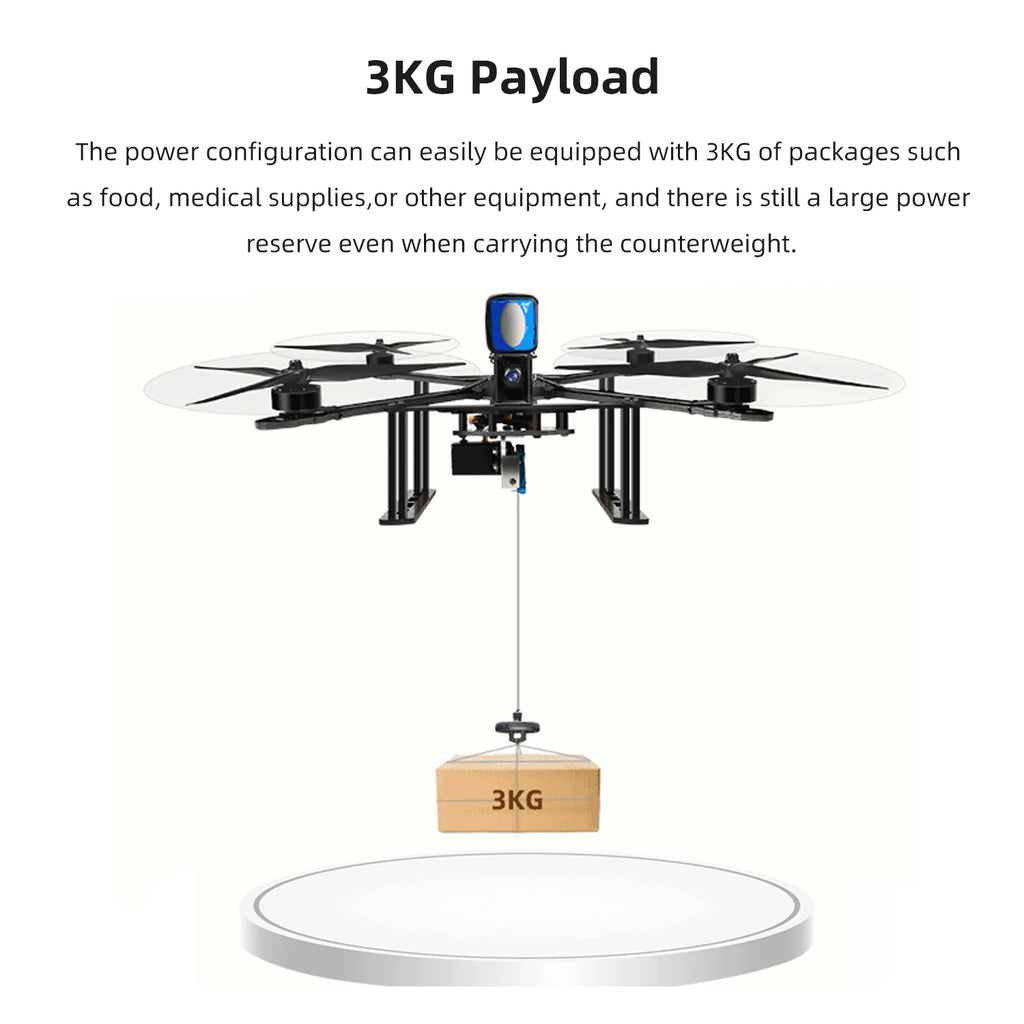

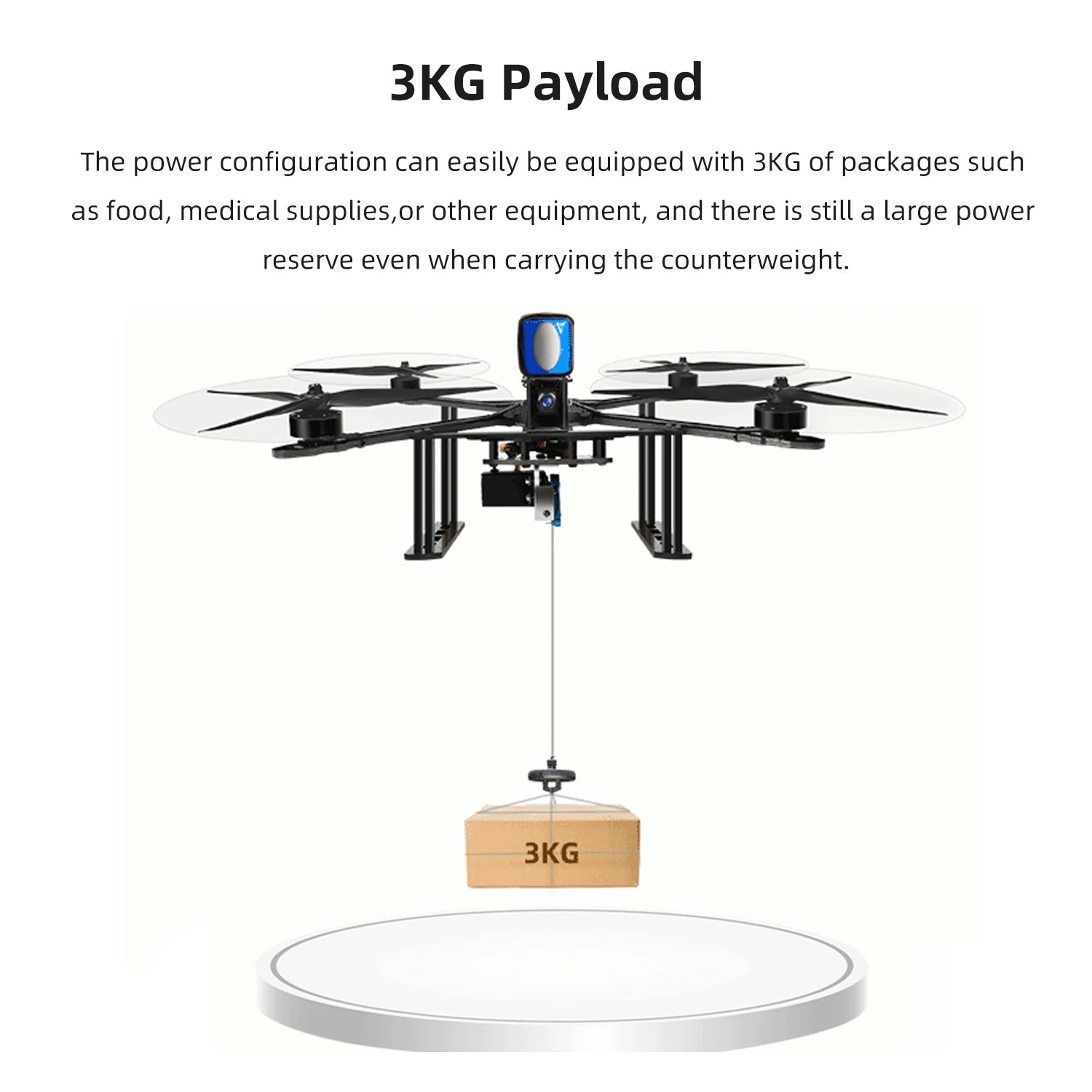

  • 3KG Max Payload: The power configuration can be equipped with 3KG Max payload of packages such as food, medical supplies, or other equipment, and there is still a large power reserve even when carrying the counterweight.

  • Auto Flight by Following the Waypoints: Come with flight controller and GPS TS100, It can pre-set flight routes to perform tasks such as autonomous take off or landing, and automatic delivery packages.

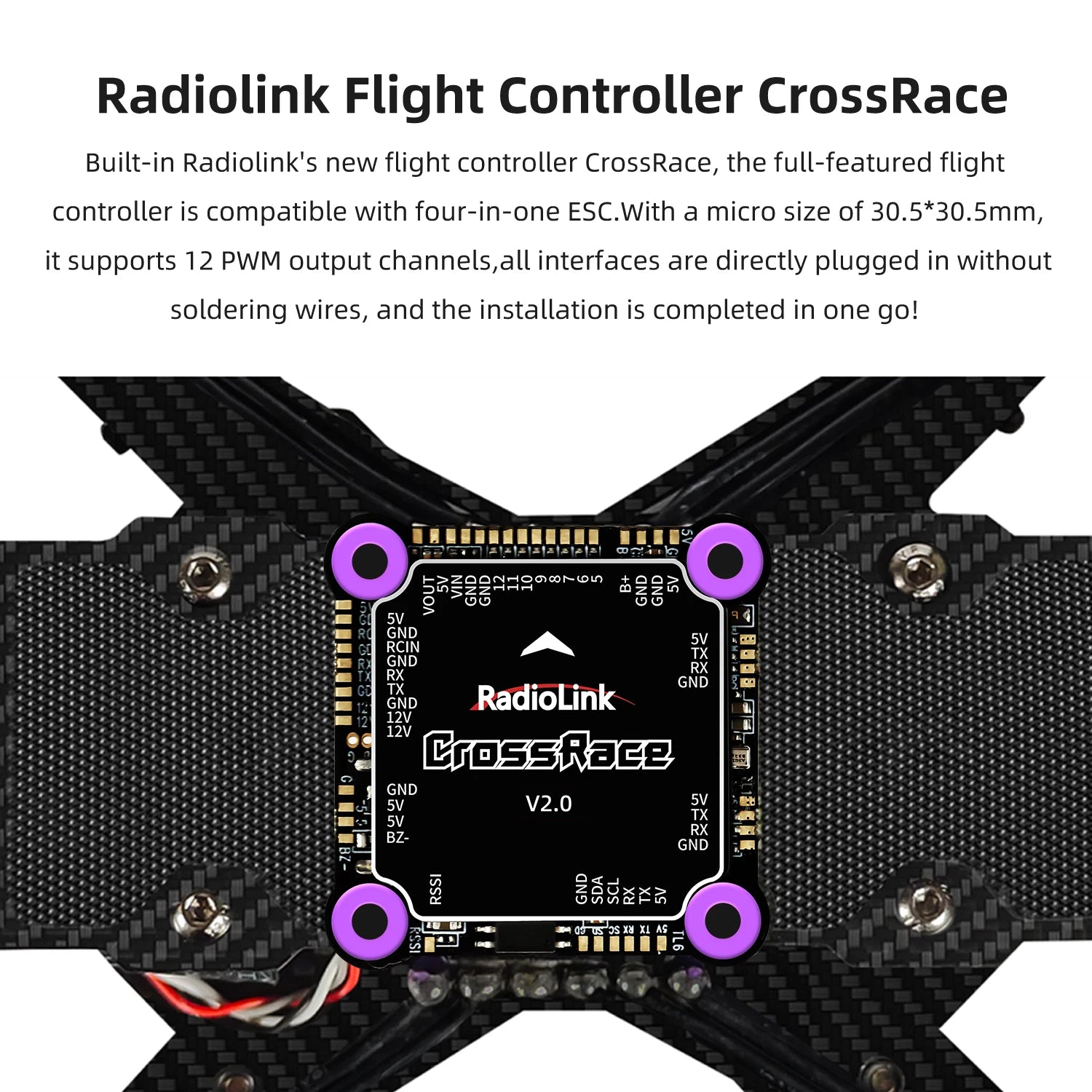

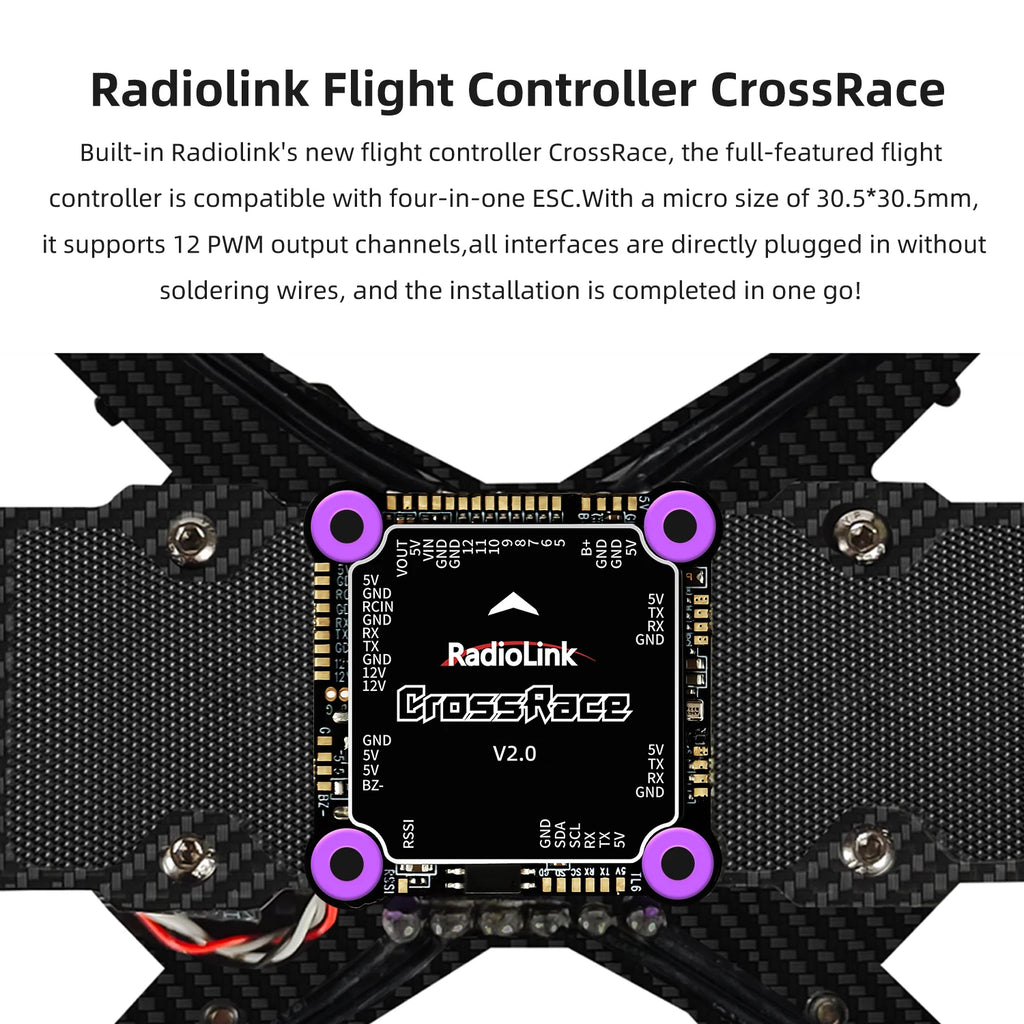

  • Radiolink Flight Controller CrossRace: Built-in Radiolink's new flight controller CrossRace, the first full-featured flight control compatible with four-in-one ESCs. With a micro size of 38*38mm, it supports 12 PWM output channels, all interfaces are directly plugged in without soldering wires, and the installation is completed in one go!

  • 4000Meters Control Distance: The 12-channel AT9S Pro from RadioLink adopts DSSS&FHSS dual hybrid spread spectrum and 16 channels pseudo random frequency hopping, ensuring excellent anti-interference performance. Functions are stable and easy to control even under the complicated urban environment with aerial control distance of 4000 meters, realizing visible and controllable racing in the city.

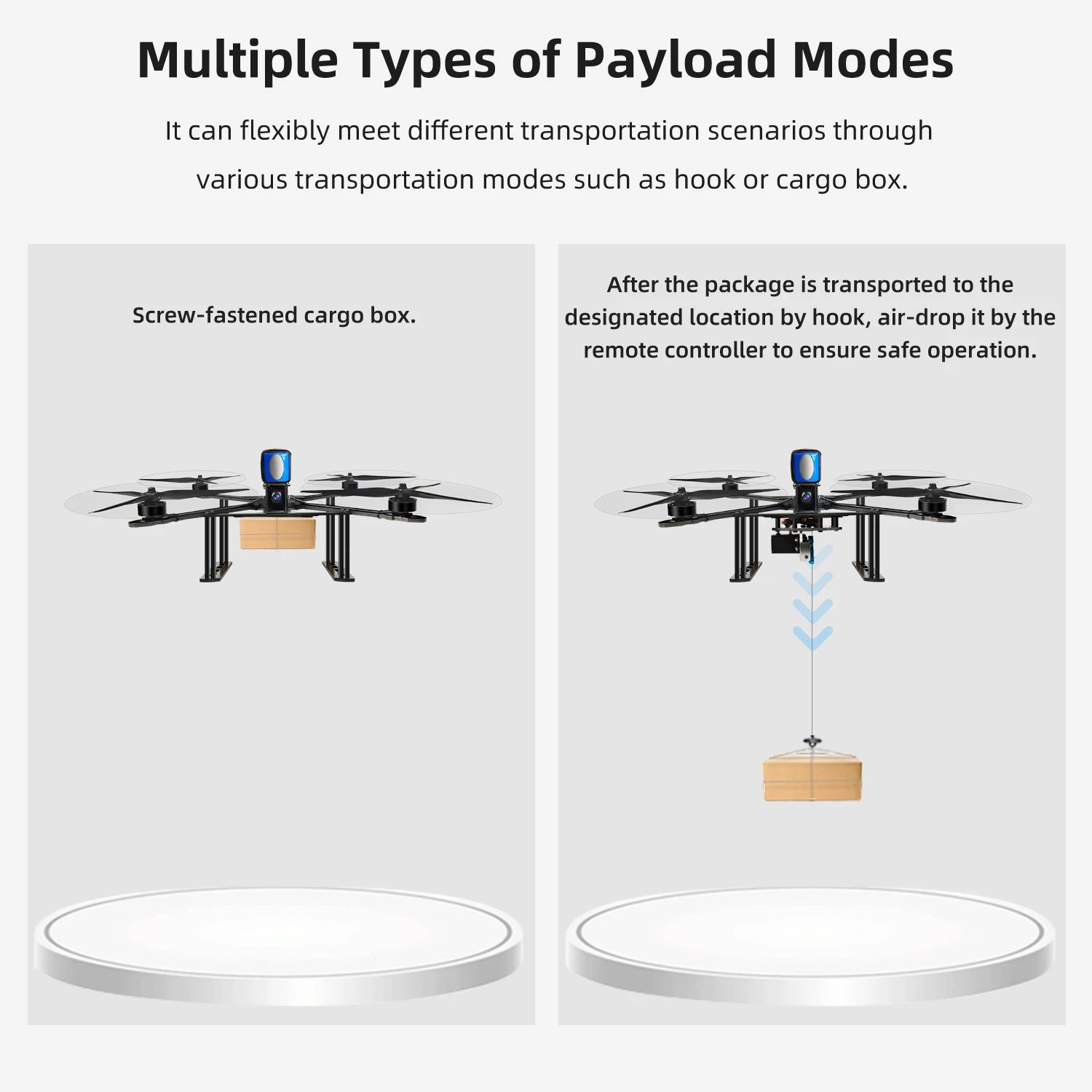

  • Multiple Types of Payload Modes: It can flexibly meet different transportation scenarios through various transportation modes, such as hook or cargo box, screw-fastened cargo box. After the package is transported to the designated location by hook, air-drop it by the remote controller to ensure safe operation.

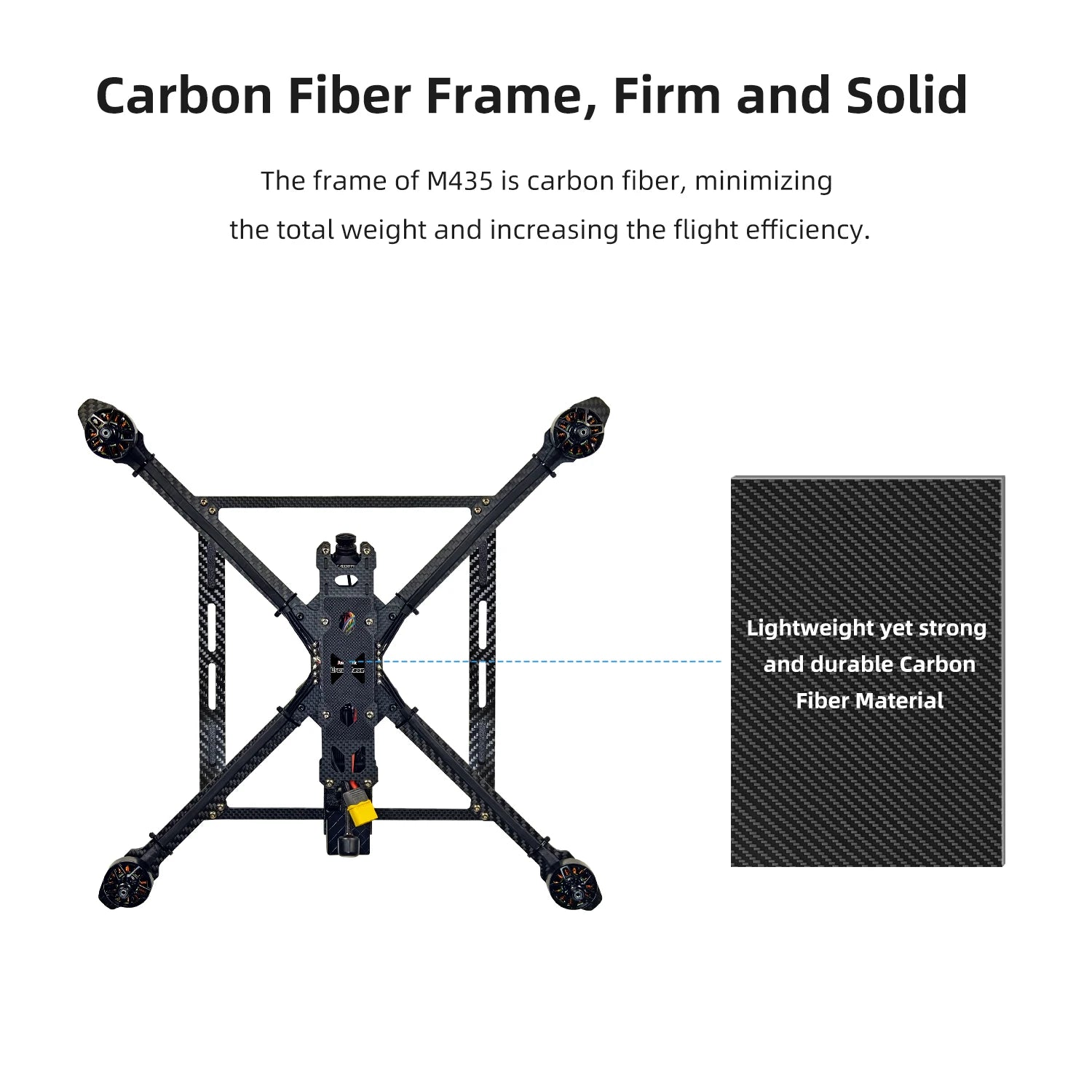

  • Carbon Fiber Frame, Firm and Solid:The frame of M435 is carbon fiber, minimizing the total weight and increasing the flight efficiency.
