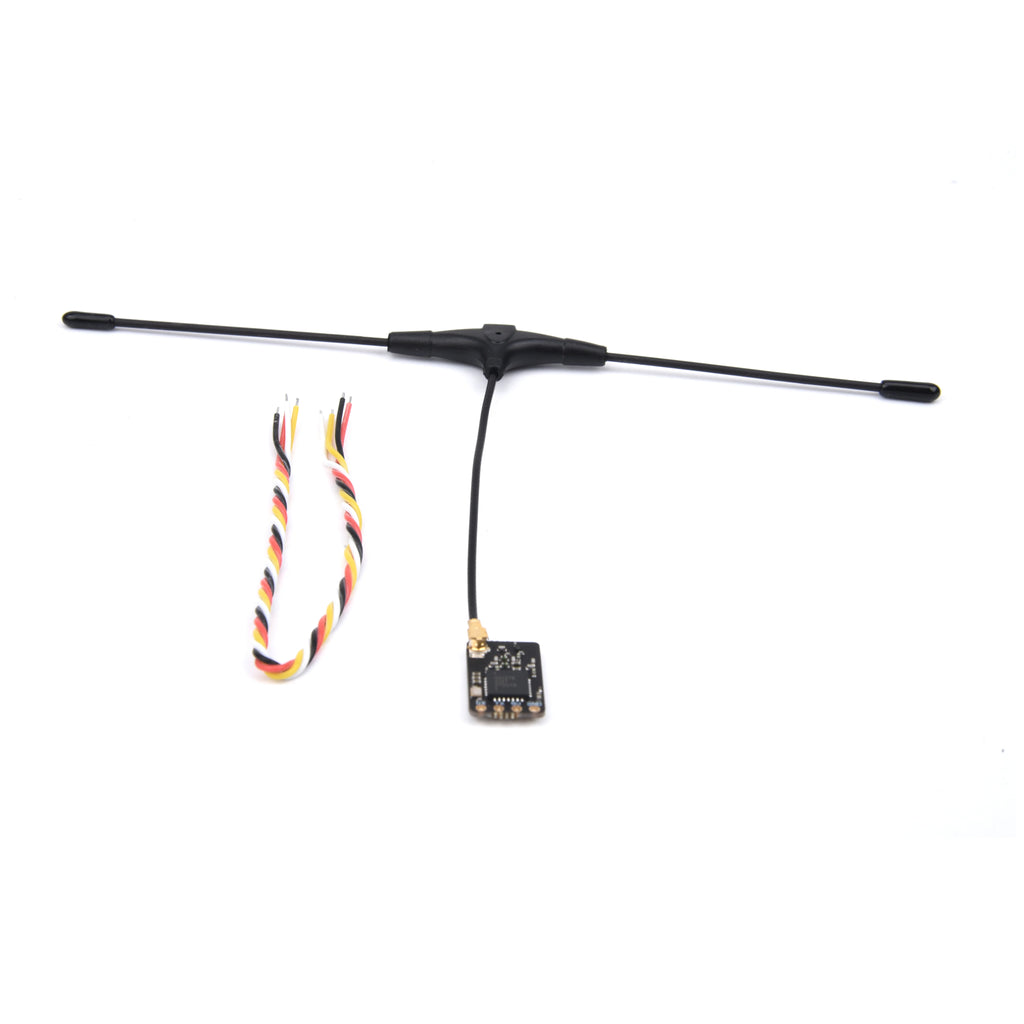

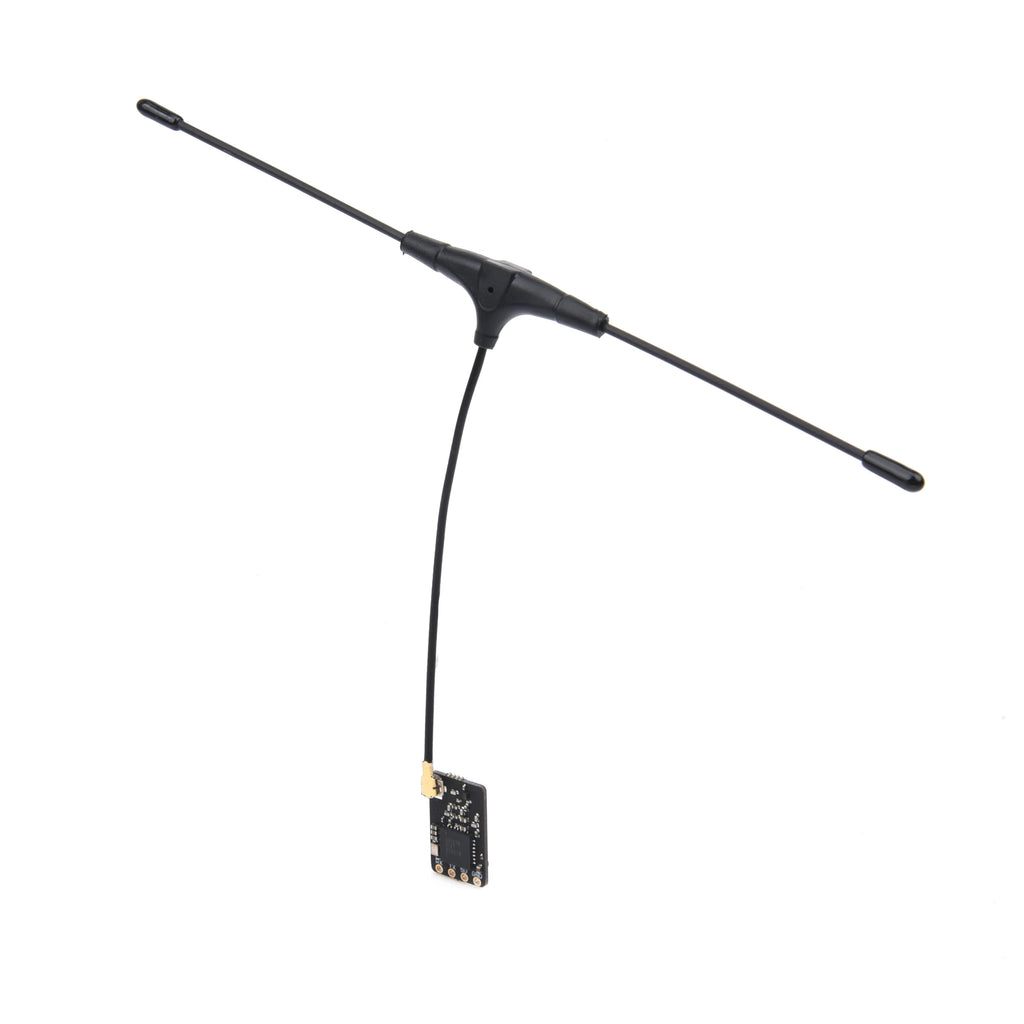

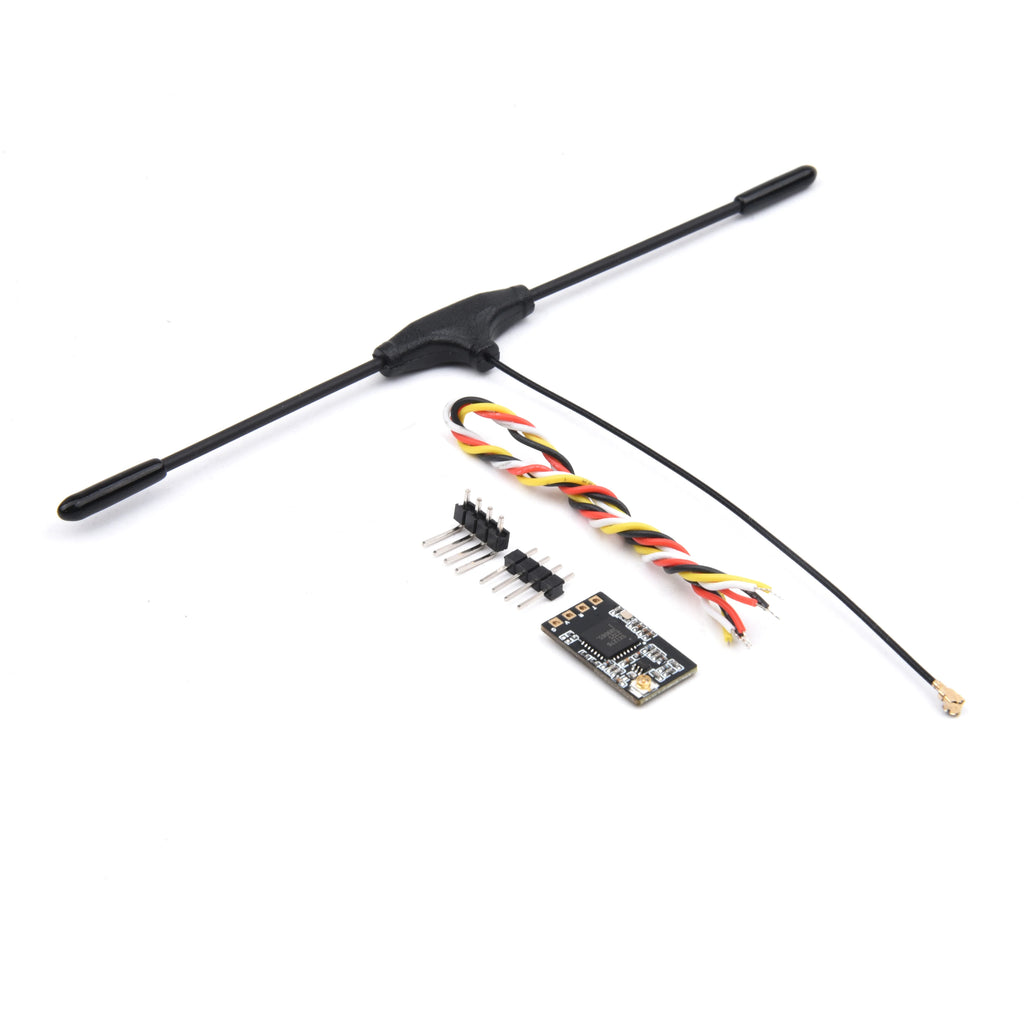

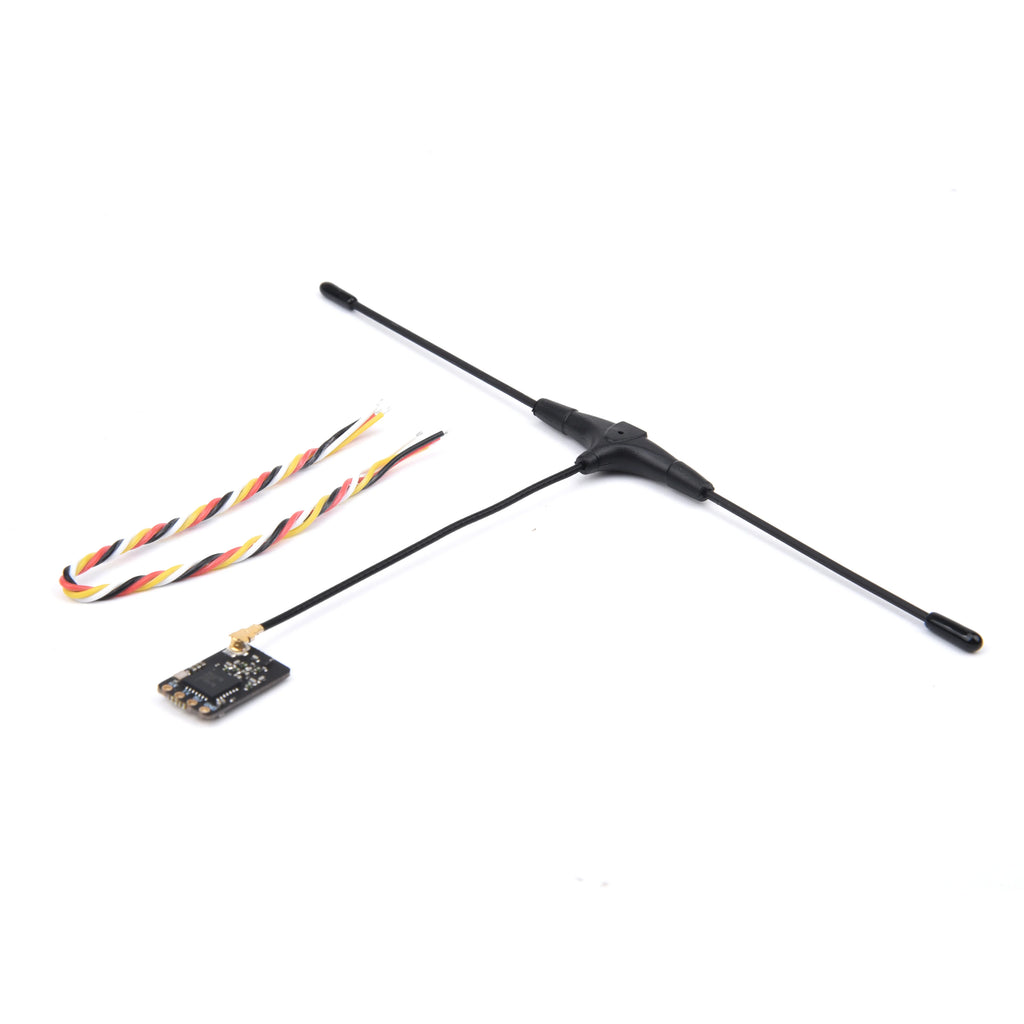

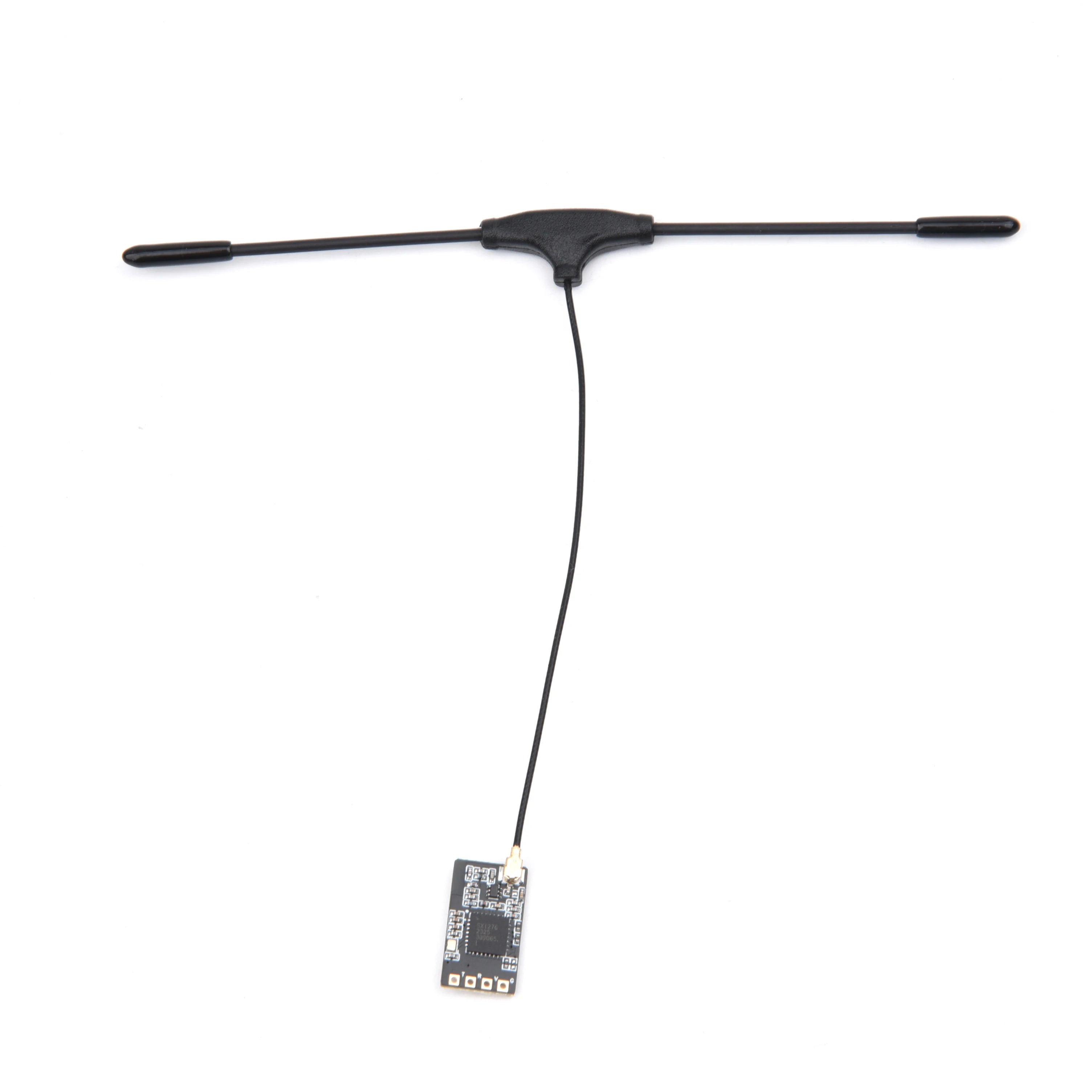

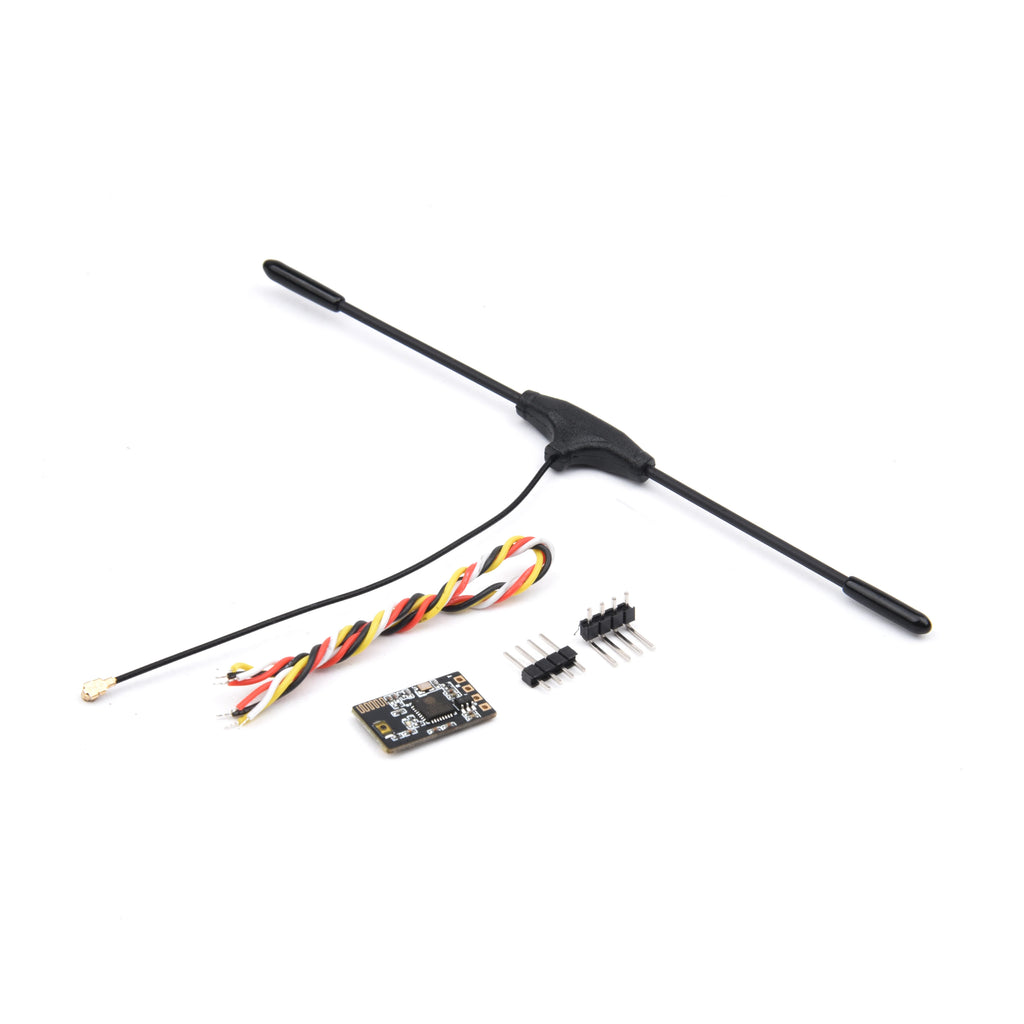

ELRS 915MHz NANO ExpressLRS Receiver with T type Antenna Support Wifi

Type 2 Specifications:

Firmware Name:BETAFPV915nano RX

Type:fcc

Antenna Interface:IPEX1

Maximum Receive Refresh Rate:200HZ

Minimum Receive Refresh Rate:25HZ

Operating Voltage:4-5.5V

Weight:0.65g

Size:20mm*11mm*3mm

Working protocol:CRSF(Betaflight)

Steps for frequency matching:

1. Please check the software version number of ELRS TX module , which is only divided into , please make sure the TX module and receiver are in the same big version , (such as software version 2.0.1 of the TX module and 2.3.0 of the receiver can be used normally on the frequency, no need to upgrade the TX module firmware), but in order to better compatibility is recommended that the TX module and the receiver upgraded to the same software version).

2. The LED will start to double flash when the receiver is powered on and off three times quickly, which means that the receiver enters the frequency pairing mode. Enter the TX nodule Bind operation

3. After successful binding, the LED on the receiver will become always on, and at the same time, it can also receive telemetry signals.

4. Receiver LED status meaning:

led always on means frequency pairing success or connection and communication is normal.

LED double flash is frequency pairing.

LED slow flash means can not receive the transmitter signal.

LED fast flash means wifi communication mode ,at this time you can update the programme through the computer or mobile phone .
